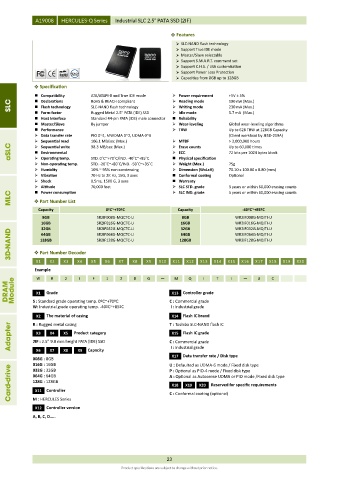

Page 30 - APRO_2019_Catalog

A19008 HERCULES-Q Series Industrial SLC 2.5” PATA SSD (2IF)

 Features
 SLC-NAND flash technology
 Support True IDE mode
 Master/Slave selectable
 Support S.M.A.R.T. command set
 Support C.H.S. / LBA customization
 Support Power Loss Protection
 Capacities from 8GB up to 128GB
 Specification
 Compatibility ATA/ATAPI-8 and True IDE mode  Power requirement +5V ± 5%
SLC  Declarations RoHS & REACH compliant  Reading mode 190 mA (Max.)
Flash technology
230 mA (Max.)

Writing mode
SLC-NAND flash technology

 Form-factor Rugged Metal 2.5" PATA (IDE) SSD  Idle mode 5.7 mA (Max.)
 Host Interface Standard 44-pin PATA (IDE) male connector  Reliability
 Master/Slave By jumper  Wear-leveling Global wear-leveling algorithms
 Performance  TBW Up to 628 TBW at 128GB Capacity
 Data transfer rate PIO 0~4, MWDMA 0~2, UDMA 0~6 (Client workload by JESD-219A)
 Sequential read 106.1 MB/sec (Max.)  MTBF > 3,000,000 hours
aSLC  Sequential write 98.3 MB/sec (Max.)  Erase counts Up to 60,000 times
ECC
72 bits per 1024 bytes block

Environmental

Physical specification
STD. 0˚C~+70˚C/IND. -40˚C~+85˚C


Operating temp.
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 75g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 70.10 x 100.00 x 8.80 (mm)
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
SLC IND. grade
5 years or within 60,000 erasing counts
Power consumption


MLC  Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SR2IF008G-MQCTC-U 8GB WR2IF008G-MQITI-U
16GB SR2IF016G-MQCTC-U 16GB WR2IF016G-MQITI-U
WR2IF032G-MQITI-U
SR2IF032G-MQCTC-U
32GB
32GB
3D-NAND  Part Number Decoder SR2IF064G-MQCTC-U 128GB WR2IF064G-MQITI-U
64GB
64GB
SR2IF128G-MQCTC-U
128GB
WR2IF128G-MQITI-U
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example R 2 I F 1 2 8 G M Q I T I U C
W
DRAM Module X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC
I : Industrial grade
W: Industrial grade operating temp. -40ºC~+85ºC C : Commercial grade
X14
Flash IC brand
X2 The material of casing T : Toshiba SLC-NAND flash IC
R : Rugged metal casing
Adapter 2IF : 2.5” 9.0 mm height PATA (IDE) SSD C : Commercial grade
Flash IC grade
X3
Product category
X4
X5
X15
I : Industrial grade
Capacity
X9
X6
X8
X7
X17 Data transfer rate / Disk type
008G : 8GB
016G : 16GB U : Defaulted as UDMA-6 mode / Fixed disk type
Card-drive 064G : 64GB A : Optional as Autosense UDMA or PIO mode /Fixed disk type
032G : 32GB
P : Optional as PIO-4 mode / Fixed disk type
128G : 128GB
Reserved for specific requirements
X19
X18
X20
Controller
X11
C : Conformal coating (optional)
M : HERCULES Series
X12 Controller version
A, B, C, D…..
