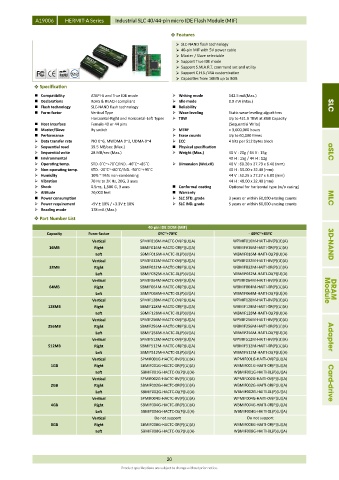

Page 27 - APRO_2019_Catalog

A19006 HERMIT-A Series Industrial SLC 40/44-pin micro IDE Flash Module (MIF)

 Features
 SLC-NAND flash technology
 40-pin MIF with 5V power cable
 Master / Slave selectable
 Support True IDE mode
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Capacities from 16MB up to 8GB
 Specification
 Compatibility ATAPI-6 and True IDE mode  Writing mode 142.5 mA(Max.)
 Declarations RoHS & REACH compliant  Idle mode 0.9 mA (Max.)
 Flash technology SLC-NAND flash technology  Reliability SLC
 Form-factor Vertical Type  Wear-leveling Static wear-leveling algorithms
Horizontal-Right and Horizontal-Left Types  TBW Up to 421.8 TBW at 8GB Capacity
 Host Interface Female 40 or 44 pins (Sequential Write)
 Master/Slave By switch  MTBF > 3,000,000 hours
 Performance  Erase counts Up to 60,000 times
 Data transfer rate PIO 0~6, MWDMA 0~2, UDMA 0~4  ECC 4 bits per 512 bytes block
 Sequential read 39.5 MB/sec (Max.)  Physical specification
 Sequential write 28 MB/sec (Max.)  Weight (Max.) 40 V : 20g / 44 V : 15g aSLC
 Environmental 40 H : 15g / 44 H : 12g
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Dimension (WxLxH) 40 V : 60.20 x 27.79 x 6.40 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C 40 H : 55.00 x 32.40 (mm)
 Humidity 10% ~ 95% non-condensing 44 V : 50.25 x 27.27 x 5.80 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes 44 H : 48.00 x 32.40 (mm)
 Shock 0.5ms, 1,500 G, 3 axes  Conformal coating Optional for horizontal type (w/o casing)
 Altitude 70,000 feet  Warranty
 Power consumption  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 Power requirement +5V ± 10% / +3.3V ± 10%  SLC IND. grade 5 years or within 60,000 erasing counts
 Reading mode 178 mA (Max.)
 Part Number List
40-pin IDE DOM (MIF)
Capacity Form-factor 0ºC~+70ºC - 40ºC~+85ºC
Vertical SPMIF016M-HACTC-0V(P)(U)(A) WPMIF016M-HAITI-0V(P)(U)(A)
16MB Right SBMIF016M-HACTC-0R(P)(U)(A) WBMIF016M-HAITI-0R(P)(U)(A) 3D-NAND
Left SBMIF016M-HACTC-0L(P)(U)(A) WBMIF016M-HAITI-0L(P)(U)(A)
Vertical SPMIF032M-HACTC-0V(P)(U)(A) WPMIF032M-HAITI-0V(P)(U)(A)
32MB Right SBMIF032M-HACTC-0R(P)(U)(A) WBMIF032M-HAITI-0R(P)(U)(A)
Left SBMIF032M-HACTC-0L(P)(U)(A) WBMIF032M-HAITI-0L(P)(U)(A)
Vertical SPMIF064M-HACTC-0V(P)(U)(A) WPMIF064M-HAITI-0V(P)(U)(A)
64MB Right SBMIF064M-HACTC-0R(P)(U)(A) WBMIF064M-HAITI-0R(P)(U)(A)
Left SBMIF064M-HACTC-0L(P)(U)(A) WBMIF064M-HAITI-0L(P)(U)(A) Module DRAM
Vertical SPMIF128M-HACTC-0V(P)(U)(A) WPMIF128M-HAITI-0V(P)(U)(A)
128MB Right SBMIF128M-HACTC-0R(P)(U)(A) WBMIF128M-HAITI-0R(P)(U)(A)
Left SBMIF128M-HACTC-0L(P)(U)(A) WBMIF128M-HAITI-0L(P)(U)(A)
Vertical SPMIF256M-HACTC-0V(P)(U)(A) WPMIF256M-HAITI-0V(P)(U)(A)
256MB Right SBMIF256M-HACTC-0R(P)(U)(A) WBMIF256M-HAITI-0R(P)(U)(A)
Left SBMIF256M-HACTC-0L(P)(U)(A) WBMIF256M-HAITI-0L(P)(U)(A)
Vertical SPMIF512M-HACTC-0V(P)(U)(A) WPMIF512M-HAITI-0V(P)(U)(A) Adapter
512MB Right SBMIF512M-HACTC-0R(P)(U)(A) WBMIF512M-HAITI-0R(P)(U)(A)
Left SBMIF512M-HACTC-0L(P)(U)(A) WBMIF512M-HAITI-0L(P)(U)(A)
Vertical SPMIF001G-HACTC-0V(P)(U)(A) WPMIF001G-HAITI-0V(P)(U)(A)
1GB Right SBMIF001G-HACTC-0R(P)(U)(A) WBMIF001G-HAITI-0R(P)(U)(A)
Left SBMIF001G-HACTC-0L(P)(U)(A) WBMIF001G-HAITI-0L(P)(U)(A)
Vertical SPMIF002G-HACTC-0V(P)(U)(A) WPMIF002G-HAITI-0V(P)(U)(A)
2GB Right SBMIF002G-HACTC-0R(P)(U)(A) WBMIF002G-HAITI-0R(P)(U)(A) Card-drive
Left SBMIF002G-HACTC-0L(P)(U)(A) WBMIF002G-HAITI-0L(P)(U)(A)
Vertical SPMIF004G-HACTC-0V(P)(U)(A) WPMIF004G-HAITI-0V(P)(U)(A)
4GB Right SBMIF004G-HACTC-0R(P)(U)(A) WBMIF004G-HAITI-0R(P)(U)(A)
Left SBMIF004G-HACTC-0L(P)(U)(A) WBMIF004G-HAITI-0L(P)(U)(A)
Vertical Do not support Do not support
8GB Right SBMIF008G-HACTC-0R(P)(U)(A) WBMIF008G-HAITI-0R(P)(U)(A)
Left SBMIF008G-HACTC-0L(P)(U)(A) WBMIF008G-HAITI-0L(P)(U)(A)
