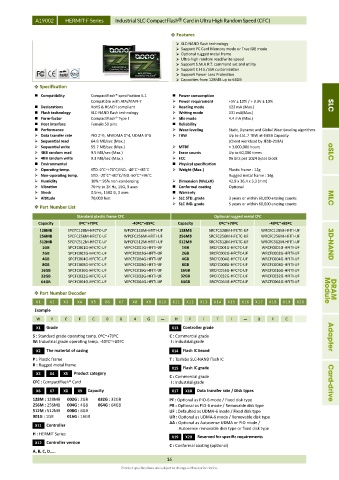

A19002 HERMIT-F Series Industrial SLC CompactFlash ® Card in Ultra High Random Speed (CFC)

 Features
 SLC-NAND flash technology
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Support Power Loss Protection
 Capacities from 128MB up to 64GB
 Specification
 Compatibility CompactFlash® specification 6.1  Power consumption
Compatible with ATA/ATAPI-7  Power requirement +5V ± 10% / + 3.3V ± 10%
 Declarations RoHS & REACH compliant  Reading mode 122 mA (Max.) SLC
 Flash technology SLC-NAND flash technology  Writing mode 131 mA(Max.)
 Form-factor CompactFlash® Type I  Idle mode 4.4 mA (Max.)
 Host interface Female 50 pins  Reliability
 Performance  Wear-leveling Static, Dynamic and Global Wear Leveling algorithms
 Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6  TBW Up to 451.7 TBW at 64GB Capacity
 Sequential read 64.8 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 55.7 MB/sec (Max.)  MTBF > 3,000,000 hours
 4KB random read 9.5 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 4KB random write 9.3 MB/sec (Max.)  ECC 96 bits per 1024 bytes block
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 12g
 Non-operating temp. STD. -20˚C~+80˚C/IND.-50˚C~+95˚C Rugged metal frame : 14g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 42.8 x 36.4 x 3.3 (mm)
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Standard plastic frame CFC Optional rugged metal CFC
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
128MB SPCFC128M-HFCTC-UF WPCFC128M-HFITI-UF 128MB SRCFC128M-HFCTC-UF WRCFC128M-HFITI-UF
256MB SPCFC256M-HFCTC-UF WPCFC256M-HFITI-UF 256MB SRCFC256M-HFCTC-UF WRCFC256M-HFITI-UF
512MB SPCFC512M-HFCTC-UF WPCFC512M-HFITI-UF 512MB SRCFC512M-HFCTC-UF WRCFC512M-HFITI-UF 3D-NAND
1GB SPCFC001G-HFCTC-UF WPCFC001G-HFITI-UF 1GB SRCFC001G-HFCTC-UF WRCFC001G-HFITI-UF
2GB SPCFC002G-HFCTC-UF WPCFC002G-HFITI-UF 2GB SRCFC002G-HFCTC-UF WRCFC002G-HFITI-UF
4GB SPCFC004G-HFCTC-UF WPCFC004G-HFITI-UF 4GB SRCFC004G-HFCTC-UF WRCFC004G-HFITI-UF
8GB SPCFC008G-HFCTC-UF WPCFC008G-HFITI-UF 8GB SRCFC008G-HFCTC-UF WRCFC008G-HFITI-UF
16GB SPCFC016G-HFCTC-UF WPCFC016G-HFITI-UF 16GB SRCFC016G-HFCTC-UF WRCFC016G-HFITI-UF
32GB SPCFC032G-HFCTC-UF WPCFC032G-HFITI-UF 32GB SRCFC032G-HFCTC-UF WRCFC032G-HFITI-UF
64GB SPCFC064G-HFCTC-UF WPCFC064G-HFITI-UF 64GB SRCFC064G-HFCTC-UF WRCFC064G-HFITI-UF

 Part Number Decoder Module DRAM
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P C F C 0 6 4 G H F I T I U F C
X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade Adapter
W: Industrial grade operating temp. -40ºC~+85ºC I : Industrial grade
X2 The material of casing X14 Flash IC brand
P : Plastic frame T : Toshiba SLC-NAND flash IC
R : Rugged metal frame
X15 Flash IC grade
X3 X4 X5 Product category
C : Commercial grade
CFC : CompactFlash® Card I : Industrial grade Card-drive
X6 X7 X8 X9 Capacity X17 X18 Data transfer rate / Disk types
128M : 128MB 002G : 2GB 032G : 32GB PF : Optional as PIO-6 mode / Fixed disk type
256M : 256MB 004G : 4GB 064G : 64GB PR : Optional as PIO-6 mode / Removable disk type
512M : 512MB 008G : 8GB UF : Defaulted as UDMA-6 mode / Fixed disk type
001G : 1GB 016G : 16GB UR : Optional as UDMA-6 mode / Removable disk type
X11 Controller AA : Optional as Autosense UDMA or PIO mode /
Autosense removable disk type or fixed disk type
H : HERMIT Series
X19 X20 Reserved for specific requirements
X12 Controller version
C : Conformal coating (optional)
A, B, C, D…..
16
Product specifications are subject to change without prior notice.
