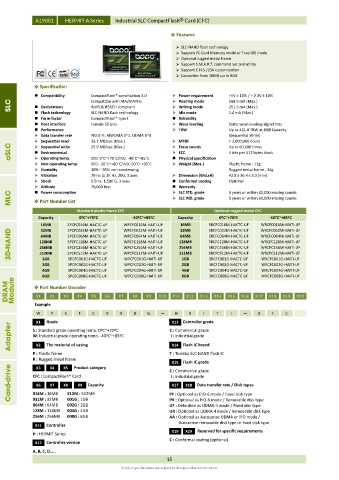

Page 22 - APRO_2019_Catalog

A19001 HERMIT-A Series Industrial SLC CompactFlash ® Card (CFC)

 Features

 SLC-NAND flash technology
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Capacities from 16MB up to 8GB
 Specification
 Compatibility CompactFlash® specification 3.0  Power requirement +5V ± 10% / + 3.3V ± 10%
SLC  Declarations Compatible with ATA/ATAPI-6  Reading mode 168.9 mA (Max.)
151.5 mA (Max.)
Writing mode
RoHS & REACH compliant

 Flash technology SLC-NAND flash technology  Idle mode 2.4 mA (Max.)
 Form-factor CompactFlash® type I  Reliability
 Host interface Female 50 pins  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 421.8 TBW at 8GB Capacity
 Data transfer rate PIO 0~6, MWDMA 0~2, UDMA 0~4 (Sequential Write)
 Sequential read 36.2 MB/sec (Max.)  MTBF > 3,000,000 hours
aSLC  Sequential write 25.9 MB/sec (Max.)  Erase counts Up to 60,000 times


Environmental
4 bits per 512 bytes block
ECC
Physical specification
Operating temp.
STD. 0˚C~+70˚C/IND. -40˚C~+85˚C


 Non-operating temp. STD. -20˚C~+80˚C/IND.-50˚C~+95˚C  Weight (Max.) Plastic frame : 12g
 Humidity 10% ~ 95% non-condensing Rugged metal frame : 14g
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Dimension (WxLxH) 42.8 x 36.4 x 3.3 (mm)
 Shock 0.5ms, 1,500 G, 3 axes  Conformal coating Optional
 Altitude 70,000 feet  Warranty 3 years or within 60,000 erasing counts
Power consumption
SLC STD. grade


MLC  Part Number List  SLC IND. grade 5 years or within 60,000 erasing counts
Standard plastic frame CFC Optional rugged metal CFC
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
16MB SPCFC016M-HACTC-UF WPCFC016M-HAITI-UF 16MB SRCFC016M-HACTC-UF WRCFC016M-HAITI-UF
WRCFC032M-HAITI-UF
32MB
SPCFC032M-HACTC-UF
WPCFC032M-HAITI-UF
32MB
SRCFC032M-HACTC-UF
3D-NAND 128MB SPCFC064M-HACTC-UF WPCFC064M-HAITI-UF 128MB SRCFC064M-HACTC-UF WRCFC064M-HAITI-UF
64MB
64MB
WRCFC128M-HAITI-UF
WPCFC128M-HAITI-UF
SPCFC128M-HACTC-UF
SRCFC128M-HACTC-UF
WPCFC256M-HAITI-UF
SPCFC256M-HACTC-UF
SRCFC256M-HACTC-UF
WRCFC256M-HAITI-UF
256MB
256MB
512MB
SPCFC512M-HACTC-UF
512MB
WPCFC512M-HAITI-UF
SRCFC512M-HACTC-UF
WRCFC512M-HAITI-UF
1GB
SRCFC002G-HACTC-UF
2GB SPCFC001G-HACTC-UF WPCFC001G-HAITI-UF 1GB SRCFC001G-HACTC-UF WRCFC001G-HAITI-UF
WRCFC002G-HAITI-UF
SPCFC002G-HACTC-UF
WPCFC002G-HAITI-UF
2GB
4GB SPCFC004G-HACTC-UF WPCFC004G-HAITI-UF 4GB SRCFC004G-HACTC-UF WRCFC004G-HAITI-UF
8GB SPCFC008G-HACTC-UF WPCFC008G-HAITI-UF 8GB SRCFC008G-HACTC-UF WRCFC008G-HAITI-UF
DRAM Module  Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X3
X2
X1
X4
Example
W P C F C 0 0 8 G H A I T I U F C
X1 Grade X13 Controller grade
Adapter S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
I : Industrial grade
W: Industrial grade operating temp. -40ºC~+85ºC
The material of casing
Flash IC brand
X14
X2
P : Plastic frame T : Toshiba SLC-NAND flash IC
R : Rugged metal frame
X15 Flash IC grade
Card-drive CFC : CompactFlash® Card Capacity I : Industrial grade
Product category
X5
X4
X3
C : Commercial grade
Data transfer rate / Disk types
X18
X9
X6
X8
X7
X17
016M : 16MB
512M : 512MB
PF : Optional as PIO-6 mode / Fixed disk type
032M : 32MB
064M : 64MB 001G : 1GB PR : Optional as PIO-6 mode / Removable disk type
002G : 2GB
UF : Defaulted as UDMA-4 mode / Fixed disk type
128M : 128MB 004G : 4GB UR : Optional as UDMA-4 mode / Removable disk type
256M : 256MB 008G : 8GB AA : Optional as Autosense UDMA or PIO mode /
X11 Controller Autosense removable disk type or fixed disk type
X19 X20 Reserved for specific requirements
H : HERMIT Series
C : Conformal coating (optional)
X12 Controller version
A, B, C, D…..
15
Product specifications are subject to change without prior notice.
