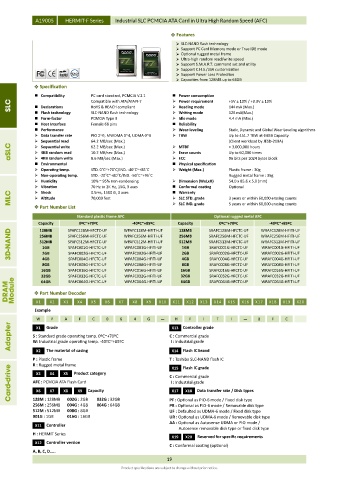

A19005 HERMIT-F Series Industrial SLC PCMCIA ATA Card in Ultra High Random Speed (AFC)

 Features
 SLC-NAND flash technology
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Support Power Loss Protection
 Capacities from 128MB up to 64GB
 Specification
 Compatibility PC card standard, PCMCIA V.2.1  Power consumption
SLC  Declarations Compatible with ATA/ATAPI-7  Power requirement +5V ± 10% / +3.3V ± 10%
RoHS & REACH compliant
Reading mode
144 mA (Max.)

 Flash technology SLC-NAND flash technology  Writing mode 126 mA(Max.)
 Form-factor PCMCIA Type II  Idle mode 4.4 mA (Max.)
 Host Interface Female 68 pins  Reliability
 Performance  Wear-leveling Static, Dynamic and Global Wear Leveling algorithms
 Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6  TBW Up to 451.7 TBW at 64GB Capacity
 Sequential read 64.2 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 62.2 MB/sec (Max.)  MTBF > 3,000,000 hours

Up to 60,000 times
10.2 MB/sec (Max.)
4KB random read
Erase counts



4KB random write
96 bits per 1024 bytes block
8.6 MB/sec (Max.)
ECC
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 30g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C Rugged metal frame : 35g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 54.0 x 85.6 x 5.0 (mm)
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Conformal coating Optional
Shock
Warranty

0.5ms, 1500 G, 3 axes

MLC  Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
 Part Number List  SLC IND. grade 5 years or within 60,000 erasing counts
Standard plastic frame AFC Optional rugged metal AFC
0ºC~+70ºC
-40ºC~+85ºC
Capacity SPAFC128M-HFCTC-UF WPAFC128M-HFITI-UF Capacity SRAFC128M-HFCTC-UF WRAFC128M-HFITI-UF
0ºC~+70ºC
-40ºC~+85ºC
128MB
128MB
3D-NAND 256MB SPAFC256M-HFCTC-UF WPAFC256M-HFITI-UF 256MB SRAFC256M-HFCTC-UF WRAFC256M-HFITI-UF
512MB
SPAFC512M-HFCTC-UF
WPAFC512M-HFITI-UF
WRAFC512M-HFITI-UF
512MB
SRAFC512M-HFCTC-UF
1GB
WPAFC001G-HFITI-UF
WRAFC001G-HFITI-UF
1GB
SPAFC001G-HFCTC-UF
SRAFC001G-HFCTC-UF
2GB
2GB
WPAFC002G-HFITI-UF
SRAFC002G-HFCTC-UF
WRAFC002G-HFITI-UF
SPAFC002G-HFCTC-UF
4GB
SPAFC008G-HFCTC-UF
WPAFC008G-HFITI-UF
8GB SPAFC004G-HFCTC-UF WPAFC004G-HFITI-UF 4GB SRAFC004G-HFCTC-UF WRAFC004G-HFITI-UF
SRAFC008G-HFCTC-UF
WRAFC008G-HFITI-UF
8GB
16GB SPAFC016G-HFCTC-UF WPAFC016G-HFITI-UF 16GB SRAFC016G-HFCTC-UF WRAFC016G-HFITI-UF
32GB SPAFC032G-HFCTC-UF WPAFC032G-HFITI-UF 32GB SRAFC032G-HFCTC-UF WRAFC032G-HFITI-UF
SRAFC064G-HFCTC-UF
64GB
SPAFC064G-HFCTC-UF
64GB
DRAM Module  Part Number Decoder
WPAFC064G-HFITI-UF
WRAFC064G-HFITI-UF
X1
Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
W Grade A F C 0 6 4 G X13 Controller grade T I U F C
H
P
I
F
Adapter S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
X1
W: Industrial grade operating temp. -40ºC~+85ºC
I : Industrial grade
X2
Flash IC brand
X14
The material of casing
P : Plastic frame T : Toshiba SLC-NAND flash IC
R : Rugged metal frame
Card-drive AFC : PCMCIA ATA Flash Card Capacity C : Commercial grade
Flash IC grade
X15
Product category
X5
X3
X4
I : Industrial grade
Data transfer rate / Disk types
X18
X6
X7
X17
X9
X8
128M : 128MB
064G : 64GB
256M : 256MB 002G : 2GB 032G : 32GB PF : Optional as PIO-6 mode / Fixed disk type
004G : 4GB
PR : Optional as PIO-6 mode / Removable disk type
512M : 512MB 008G : 8GB UF : Defaulted as UDMA-6 mode / Fixed disk type
001G : 1GB 016G : 16GB UR : Optional as UDMA-6 mode / Removable disk type
X11 Controller AA : Optional as Autosense UDMA or PIO mode /
Autosense removable disk type or fixed disk type
H : HERMIT Series
X19 X20 Reserved for specific requirements
X12 Controller version
C : Conformal coating (optional)
A, B, C, D…..
19
Product specifications are subject to change without prior notice.
