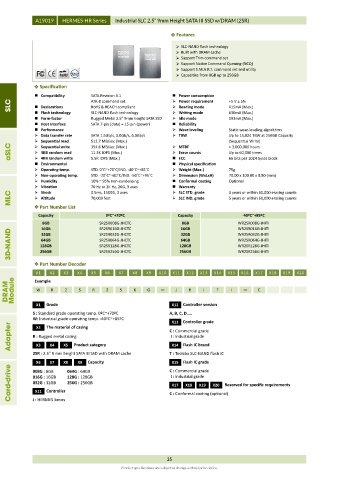

A19019 HERMES-HR Series Industrial SLC 2.5” 9mm Height SATA III SSD w/DRAM (2SR)

 Features

 SLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 command set  Power requirement +5 V ± 5%
Reading mode

415mA (Max.)
RoHS & REACH compliant
 Flash technology SLC-NAND flash technology  Writing mode 630mA (Max.)
 Form-factor Rugged Metal 2.5” 9mm height SATA SSD  Idle mode 193mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 13,824 TBW at 256GB Capacity
 Sequential read 512.7 MB/sec (Max.) (Sequential Write)
aSLC  Sequential write 354.6 MB/sec (Max.)  MTBF > 3,000,000 hours
4KB random read
Up to 60,000 times
Erase counts

11.3K IOPS (Max.)

66 bits per 1024 bytes block
ECC
4KB random write

5.5K IOPS (Max.)

 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) 75g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Dimension (WxLxH) 70.00 x 100.00 x 8.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 3 years or within 60,000 erasing counts
SLC STD. grade
Shock
0.5ms, 1500G, 3 axes


MLC  Altitude 70,000 feet  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB
8GB SR2SR008G-JHCTC 16GB WR2SR008G-JHITI
16GB
WR2SR016G-JHITI
SR2SR016G-JHCTC
3D-NAND 128GB SR2SR032G-JHCTC 128GB WR2SR032G-JHITI
32GB
32GB
WR2SR064G-JHITI
64GB
SR2SR064G-JHCTC
64GB
SR2SR128G-JHCTC
WR2SR128G-JHITI
SR2SR256G-JHCTC
256GB
256GB
WR2SR256G-JHITI
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
DRAM Module W R 2 S R 2 5 6 G J H I T I C
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC X13 Controller grade
Adapter R : Rugged metal casing C : Commercial grade
X2
The material of casing
I : Industrial grade
Product category
Flash IC brand
X14
X5
X3
X4
2SR : 2.5” 9 mm height SATA III SSD with DRAM cache T : Toshiba SLC-NAND flash IC
Capacity
Flash IC grade
X9
X15
X6 X7 X8 064G : 64GB C : Commercial grade
Card-drive 016G : 16GB 128G : 128GB I : Industrial grade X20 Reserved for specific requirements
008G : 8GB
256G : 256GB
032G : 32GB
X17
X19
X18
Controller
X11
C : Conformal coating (optional)
J : HERMES Series
35
Product specifications are subject to change without prior notice.
