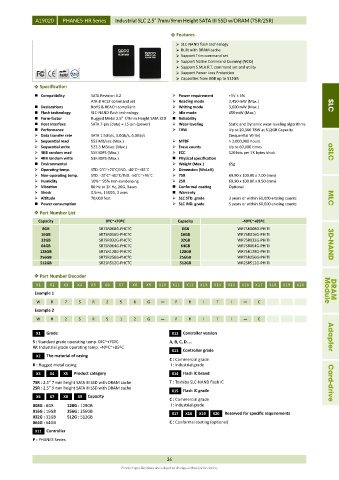

A19020 PHANES-HR Series Industrial SLC 2.5” 7mm/9mm Height SATA III SSD w/DRAM (7SR/2SR)

 Features
 SLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 512GB
 Specification
 Compatibility SATA Revision 3.2  Power requirement +5V ± 5%
ATA-8 ACS2 command set  Reading mode 2,450 mW (Max.)
 Declarations RoHS & REACH compliant  Writing mode 3,600 mW (Max.) SLC
 Flash technology SLC-NAND flash technology  Idle mode 450 mW (Max.)
 Form-factor Rugged Metal 2.5” 7/9mm Height SATA SSD  Reliability
 Host Interface SATA 7-pin (data) + 15-pin (power)  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 20,560 TBW at 512GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Sequential Write)
 Sequential read 553 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 523.3 MB/sec (Max.)  Erase counts Up to 60,000 times
 4KB random read 55K IOPS (Max.)  ECC 120 bits per 2K bytes block aSLC
 4KB random write 53K IOPS (Max.)  Physical specification
 Environmental  Weight (Max.) 65g
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Dimension (WxLxH)
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  7SR 69.90 x 100.00 x 7.00 (mm)
 Humidity 10% ~ 95% non-condensing  2SR 69.90 x 100.00 x 9.50 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Conformal coating Optional
 Shock 0.5ms, 1500G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 Power consumption  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SR7SR008G-PHCTC 8GB WR7SR008G-PHITI
16GB SR7SR016G-PHCTC 16GB WR7SR016G-PHITI
32GB SR7SR032G-PHCTC 32GB WR7SR032G-PHITI
64GB SR7SR064G-PHCTC 64GB WR7SR064G-PHITI 3D-NAND
128GB SR7SR128G-PHCTC 128GB WR7SR128G-PHITI
256GB SR7SR256G-PHCTC 256GB WR7SR256G-PHITI
512GB SR2SR512G-PHCTC 512GB WR2SR512G-PHITI

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1 Module DRAM
W R 7 S R 2 5 6 G P H I T I C
Example 2
W R 2 S R 5 1 2 G P H I T I C

X1 Grade X12 Controller version Adapter
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
R : Rugged metal casing I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand
7SR : 2.5” 7 mm height SATA III SSD with DRAM cache T : Toshiba SLC-NAND flash IC Card-drive
2SR : 2.5” 9 mm height SATA III SSD with DRAM cache
X15 Flash IC grade
X6 X7 X8 X9 Capacity
C : Commercial grade
008G : 8GB 128G : 128GB I : Industrial grade
016G : 16GB 256G : 256GB X17 X18 X19 X20 Reserved for specific requirements
032G : 32GB 512G : 512GB
064G : 64GB C : Conformal coating (optional)
X11 Controller
P : PHANES Series

36
Product specifications are subject to change without prior notice.
