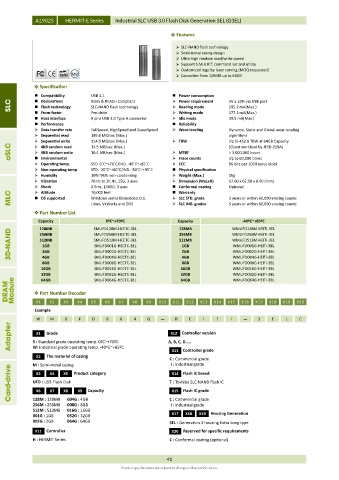

A19025 HERMIT-E Series Industrial SLC USB 3.0 Flash Disk Generation 3EL (G3EL)

 Features

 SLC-NAND flash technology
 Semi-metal casing design
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Customized logo by laser carving (MOQ requested)
 Capacities from 128MB up to 64GB
 Specification
 Compatibility USB 3.1  Power consumption
SLC  Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port
Reading mode
SLC-NAND flash technology


195.2 mA(Max.)
Flash technology
 From-factor Pen drive  Writing mode 177.2 mA(Max.)
 Host interface 9 pins USB 3.0 Type A connector  Idle mode 39.5 mA(Max.)
 Performance  Reliability
 Data transfer rate FullSpeed, HighSpeed and SuperSpeed  Wear-leveling Dynamic, Static and Global wear-leveling
 Sequential read 189.8 MB/sec (Max.) algorithms
 Sequential write 114.9 MB/sec (Max.)  TBW Up to 452.8 TBW at 64GB Capacity
aSLC  4KB random read 14.5 MB/sec (Max.)  MTBF (Client workload by JESD-219A)
10.4 MB/sec (Max.)
> 3,000,000 hours
4KB random write

Erase counts

Up to 60,000 times
Environmental

 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  ECC 96 bits per 1024 bytes block
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Physical specification
 Humidity 10%~95% non-condensing  Weight (Max.) 15g
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Dimension (WxLxH) 17.60 x 62.10 x 8.40 (mm)
 Shock 0.5ms, 1500G, 3 axes  Conformal coating Optional
70,000 feet
Warranty

Altitude

MLC  OS supported Windows series Embedded O.S.  SLC STD. grade 3 years or within 60,000 erasing counts
5 years or within 60,000 erasing counts
SLC IND. gradee

Linux, VxWorks and DOS
 Part Number List
0ºC~+70ºC
Capacity SMUFD128M-HECTC-3EL Capacity WMUFD128M-HEITI-3EL
-40ºC~+85ºC
128MB
128MB
3D-NAND 256MB SMUFD256M-HECTC-3EL 256MB WMUFD256M-HEITI-3EL
512MB
WMUFD512M-HEITI-3EL
SMUFD512M-HECTC-3EL
512MB
1GB
SMUFD001G-HECTC-3EL
WMUFD001G-HEITI-3EL
1GB
2GB
SMUFD002G-HECTC-3EL
2GB
WMUFD002G-HEITI-3EL
4GB
8GB
SMUFD008G-HECTC-3EL
8GB SMUFD004G-HECTC-3EL 4GB WMUFD004G-HEITI-3EL
WMUFD008G-HEITI-3EL
16GB SMUFD016G-HECTC-3EL 16GB WMUFD016G-HEITI-3EL
32GB SMUFD032G-HECTC-3EL 32GB WMUFD032G-HEITI-3EL
64GB
64GB
WMUFD064G-HEITI-3EL
SMUFD064G-HECTC-3EL
DRAM Module  Part Number Decoder
X1
Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
W M U F D 0 6 4 G H E I T I 3 E L C
Adapter S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
Grade
Controller version
X1
X12
W: Industrial grade operating temp. -40ºC~+85ºC
Controller grade
X13
X2 The material of casing C : Commercial grade
I : Industrial grade
M : Semi-metal casing
Card-drive UFD : USB Flash Disk Product category T : Toshiba SLC-NAND flash IC
X14
Flash IC brand
X5
X3
X4
Capacity
Flash IC grade
X8
X9
X6
X7
X15
128M : 128MB
I : Industrial grade
008G : 8GB
256M : 256MB 004G : 4GB C : Commercial grade
512M : 512MB 016G : 16GB
001G : 1GB 032G : 32GB X17 X18 X19 Housing Generation
002G : 2GB 064G : 64GB 3EL : Generation 3 housing Extra Long type
X11 Controller X20 Reserved for specific requirements
H : HERMIT Series C : Conformal coating (optional)
41
Product specifications are subject to change without prior notice.
