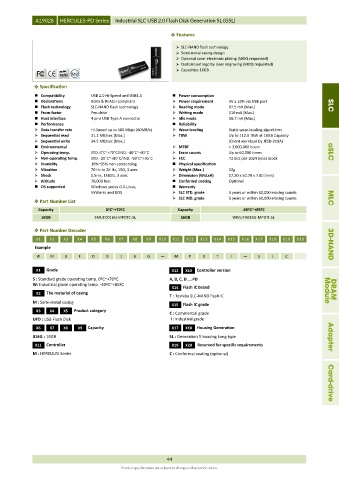

A19028 HERCULES-PD Series Industrial SLC USB 2.0 Flash Disk Generation 5L (G5L)

 Features

 SLC-NAND flash technology
 Semi-metal casing design
 Optional color electronic plating (MOQ requested)
 Customized logo by laser engraving (MOQ requested)
 Capacities 16GB

 Specification
 Compatibility USB 2.0 Hi-Speed and USB1.1  Power consumption
 Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port
 Flash technology SLC-NAND flash technology  Reading mode 97.5 mA (Max.) SLC
 From-factor Pen drive  Writing mode 110 mA (Max.)
 Host interface 4 pins USB Type A connector  Idle mode 58.7 mA (Max.)
 Performance  Reliability
 Data transfer rate Hi-Speed up to 480 Mbps (60MB/s)  Wear-leveling Static wear-leveling algorithms
 Sequential read 31.2 MB/sec (Max.)  TBW Up to 112.6 TBW at 16GB Capacity
 Sequential write 24.5 MB/sec (Max.) (Client workload by JESD-219A)
 Environmental  MTBF > 3,000,000 hours
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Erase counts Up to 60,000 times aSLC
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  ECC 72 bits per 1024 bytes block
 Humidity 10%~95% non-condensing  Physical specification
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Weight (Max.) 12g
 Shock 0.5ms, 1500G, 3 axes  Dimension (WxLxH) 17.20 x 50.70 x 7.80 (mm)
 Altitude 70,000 feet  Conformal coating Optional
 OS supported Windows series O.S.Linux,  Warranty
VxWorks and DOS  SLC STD. grade 3 years or within 60,000 erasing counts
 SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
16GB SMUFD016G-MPDTC-5L 16GB WMUFD016G-MPDTI-5L

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 3D-NAND
W M U F D 0 1 6 G M P D T I 5 L C

X1 Grade X12 X13 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..PD
W: Industrial grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing Module DRAM
T : Toshiba SLC-NAND flash IC
M : Semi-metal casing
X15 Flash IC grade
X3 X4 X5 Product category C : Commercial grade
UFD : USB Flash Disk I : Industrial grade
X6 X7 X8 X9 Capacity X17 X18 Housing Generation
016G : 16GB 5L : Generation 5 housing Long type Adapter
X11 Controller X19 X20 Reserved for specific requirements
M : HERCULES Series C : Conformal coating (optional) Card-drive

44
Product specifications are subject to change without prior notice.
