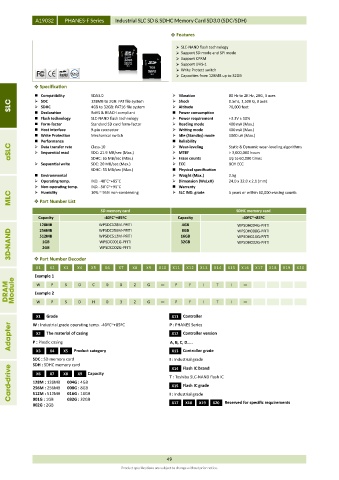

A19032 PHANES-F Series Industrial SLC SD & SDHC Memory Card SD3.0 (SDC/SDH)

 Features

 SLC-NAND flash technology
 Support SD mode and SPI mode
 Support CPRM
 Support UHS-1
 Write Protect switch
 Capacities from 128MB up to 32GB
 Specification
 Compatibility SDA3.0  Vibration 80 Hz to 2K Hz, 20G, 3 axes
SLC  SDC 128MB to 2GB: FAT file system  Shock 0.5ms, 1,500 G, 3 axes

4GB to 32GB: FAT16 file system
SDHC
Altitude

70,000 feet
 Declaration RoHS & REACH compliant  Power consumption
 Flash technology SLC-NAND flash technology  Power requirement +3.3V ± 10%
 Form-factor Standard SD card form-factor  Reading mode 400 mA (Max.)
 Host interface 9-pin connector  Writing mode 400 mA (Max.)
 Write Protection Mechanical switch  Idle (Standby) mode 1000 uA (Max.)
 Performance  Reliability
aSLC  Data transfer rate Class-10  Wear-leveling Static & Dynamic wear-leveling algorithms
Sequential read

MTBF
SDC: 21.9 MB/sec (Max.)

> 3,000,000 hours

Up to 60,000 times
Erase counts
SDHC: 65 MB/sec (Max.)
 Sequential write SDC: 20 MB/sec (Max.)  ECC BCH ECC
SDHC: 55 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 2.5g
 Operating temp. IND. -40˚C~+85˚C  Dimension (WxLxH) 24.0 x 32.0 x 2.1 (mm)
 Non-operating temp. IND. -50˚C~+95˚C  Warranty 5 years or within 60,000 erasing counts

Humidity
10% ~ 95% non-condensing
SLC IND. grade

MLC  Part Number List
SD memory card SDHC memory card
Capacity -40ºC~+85ºC Capacity -40ºC~+85ºC
128MB WPSDC128M-PFITI 4GB WPSDH004G-PFITI
256MB
8GB
WPSDC256M-PFITI
WPSDH008G-PFITI
3D-NAND 512MB WPSDC512M-PFITI 16GB WPSDH016G-PFITI
32GB
1GB
WPSDC001G-PFITI
WPSDH032G-PFITI
2GB
WPSDC002G-PFITI

X2
X3
X4
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1
DRAM Module Example 2 S S D D C H 0 0 0 3 2 2 G P P F F I I T T I I
W
P
W
G
P
Controller
X1 Grade P : PHANES Series
X11
W : Industrial grade operating temp. -40ºC~+85ºC
Adapter P : Plastic casing A, B, C, D…..
Controller version
The material of casing
X2
X12
Controller grade
X5
X3
X13
X4
SDC : SD memory card Product category I : Industrial grade
SDH : SDHC memory card Capacity X14 Flash IC brand
Card-drive 128M : 128MB X8 004G : 4GB T : Toshiba SLC-NAND flash IC
X9
X7
X6
Flash IC grade
X15
008G : 8GB
256M : 256MB
016G : 16GB
512M : 512MB
I : Industrial grade
001G : 1GB
002G : 2GB 032G : 32GB X17 X18 X19 X20 Reserved for specific requirements
49
Product specifications are subject to change without prior notice.
