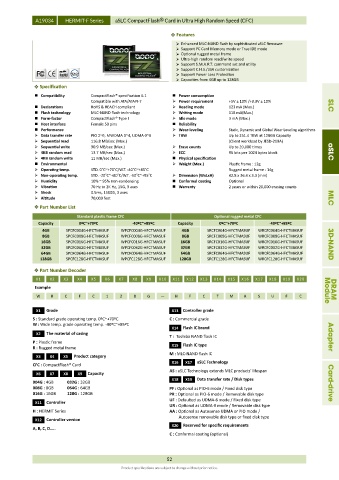

P. 59

A19034 HERMIT-F Series aSLC CompactFlash ® Card in Ultra High Random Speed (CFC)

 Features
 Enhanced MLC-NAND ﬂash by sophisticated aSLC ﬁrmware
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Support Power Loss Protection
 Capacities from 4GB up to 128GB
 Speciﬁcation
 Compatibility CompactFlash® speciﬁcation 6.1  Power consumption
Compatible with ATA/ATAPI-7  Power requirement +5V ± 10% /+3.3V ± 10%
 Declarations RoHS & REACH compliant  Reading mode 123 mA (Max.) SLC
 Flash technology MLC-NAND ﬂash technology  Writing mode 118 mA(Max.)
 Form-factor CompactFlash® Type I  Idle mode 3 mA (Max.)
 Host interface Female 50 pins  Reliability
 Performance  Wear-leveling Static, Dynamic and Global Wear Leveling algorithms
 Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6  TBW Up to 251.4 TBW at 128GB Capacity
 Sequential read 116.8 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 90.9 MB/sec (Max.)  Erase counts Up to 20,000 times
 4KB random read 13.7 MB/sec (Max.)  ECC 96 bits per 1024 bytes block aSLC
 4KB random write 11 MB/sec (Max.)  Physical speciﬁcation
 Environmental  Weight (Max.) Plastic frame : 12g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C Rugged metal frame : 14g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxLxH) 42.8 x 36.4 x 3.3 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Warranty 2 years or within 20,000 erasing counts
 Shock 0.5ms, 1500G, 3 axes
 Altitude 70,000 feet MLC
 Part Number List
Standard plastic frame CFC Optional rugged metal CFC
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
4GB SPCFC004G-HFCTMASUF WPCFC004G-HFCTMASUF 4GB SRCFC004G-HFCTMASUF WRCFC004G-HFCTMASUF
8GB SPCFC008G-HFCTMASUF WPCFC008G-HFCTMASUF 8GB SRCFC008G-HFCTMASUF WRCFC008G-HFCTMASUF
16GB SPCFC016G-HFCTMASUF WPCFC016G-HFCTMASUF 16GB SRCFC016G-HFCTMASUF WRCFC016G-HFCTMASUF 3D-NAND
32GB SPCFC032G-HFCTMASUF WPCFC032G-HFCTMASUF 32GB SRCFC032G-HFCTMASUF WRCFC032G-HFCTMASUF
64GB SPCFC064G-HFCTMASUF WPCFC064G-HFCTMASUF 64GB SRCFC064G-HFCTMASUF WRCFC064G-HFCTMASUF
128GB SPCFC128G-HFCTMASUF WPCFC128G-HFCTMASUF 128GB SRCFC128G-HFCTMASUF WRCFC128G-HFCTMASUF

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example Module DRAM
W R C F C 1 2 8 G H F C T M A S U F C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND ﬂash IC Adapter
P : Plastic frame Flash IC type
R : Rugged metal frame X15
X3 X4 X5 Product category M : MLC-NAND ﬂash IC
X16 X17 aSLC Technology
CFC : CompactFlash® Card
AS : aSLC Technology extends MLC products’ lifespan
X6 X7 X8 X9 Capacity
X18 X19 Data transfer rate / Disk types
004G : 4GB 032G : 32GB Card-drive
008G : 8GB 064G : 64GB PF : Optional as PIO-6 mode / Fixed disk type
016G : 16GB 128G : 128GB PR : Optional as PIO-6 mode / Removable disk type
X11 Controller UF : Defaulted as UDMA-6 mode / Fixed disk type
UR : Optional as UDMA-6 mode / Removable disk type
H : HERMIT Series AA : Optional as Autosense UDMA or PIO mode /
Autosense removable disk type or ﬁxed disk type
X12 Controller version
X20 Reserved for speciﬁc requirements
A, B, C, D…..
C : Conformal coating (optional)

52
Product speciﬁcations are subject to change without prior notice.
