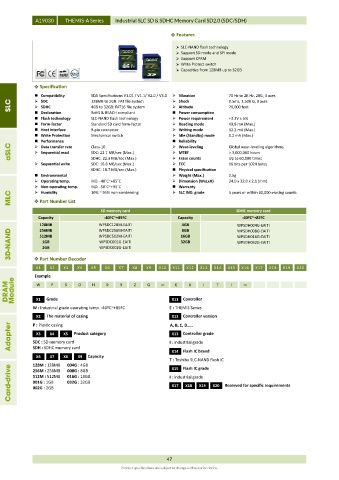

Page 54 - APRO_2019_Catalog

A19030 THEMIS-A Series Industrial SLC SD & SDHC Memory Card SD2.0 (SDC/SDH)

 Features

 SLC-NAND flash technology
 Support SD mode and SPI mode
 Support CPRM
 Write Protect switch
 Capacities from 128MB up to 32GB

 Specification
 Compatibility SDA Specifications V1.01 / V1.1/ V2.0 / V3.0  Vibration 70 Hz to 2K Hz, 20G, 3 axes
SLC  SDC 128MB to 2GB: FAT file system  Shock 0.5ms, 1,500 G, 3 axes
Altitude

SDHC
70,000 feet
4GB to 32GB: FAT16 file system

 Declaration RoHS & REACH compliant  Power consumption
 Flash technology SLC-NAND flash technology  Power requirement +3.3V ± 5%
 Form-factor Standard SD card form-factor  Reading mode 49.8 mA (Max.)
 Host interface 9-pin connector  Writing mode 52.2 mA (Max.)
 Write Protection Mechanical switch  Idle (Standby) mode 0.2 mA (Max.)
 Performance  Reliability
aSLC  Data transfer rate Class-10  Wear-leveling Global wear-leveling algorithms
> 3,000,000 hours
SDC: 22.1 MB/sec (Max.)
Sequential read
MTBF


Up to 60,000 times
SDHC: 22.3 MB/sec (Max.)

Erase counts
 Sequential write SDC: 16.8 MB/sec (Max.)  ECC 16 bits per 1024 bytes
SDHC: 18.7 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 2.5g
 Operating temp. IND. -40˚C~+85˚C  Dimension (WxLxH) 24.0 x 32.0 x 2.1 (mm)
 Non-operating temp. IND. -50˚C~+95˚C  Warranty 5 years or within 60,000 erasing counts
10% ~ 95% non-condensing

Humidity

SLC IND. grade
MLC  Part Number List
SD memory card SDHC memory card
Capacity -40ºC~+85ºC Capacity -40ºC~+85ºC
128MB WPSDC128M-EAITI 4GB WPSDH004G-EAITI
8GB
256MB
WPSDC256M-EAITI
3D-NAND 512MB WPSDC512M-EAITI 16GB WPSDH016G-EAITI
WPSDH008G-EAITI
WPSDC001G-EAITI
32GB
1GB
WPSDH032G-EAITI
WPSDC002G-EAITI
2GB

X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X2
X3
X4
Example
DRAM Module W Grade S D H 0 3 2 G E Controller I T I
P
A
X11
X1
W : Industrial grade operating temp. -40ºC~+85ºC E : THEMIS Series
Controller version
X2 The material of casing A, B, C, D…..
X12
P : Plastic casing
Adapter SDC : SD memory card Product category I : Industrial grade
Controller grade
X5
X3
X4
X13
SDH : SDHC memory card
X6 X7 X8 X9 Capacity X14 Flash IC brand
T : Toshiba SLC-NAND flash IC
128M : 128MB
004G : 4GB
Card-drive 512M : 512MB 016G : 16GB I : Industrial grade X20 Reserved for specific requirements
Flash IC grade
X15
008G : 8GB
256M : 256MB
001G : 1GB
032G : 32GB
X17
X18
X19
002G : 2GB
