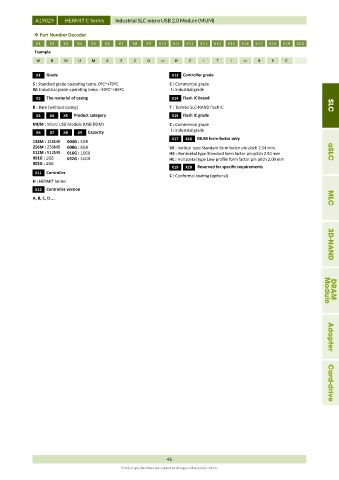

A19029 HERMIT-C Series Industrial SLC micro USB 2.0 Module (MUM)

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M U M 0 3 2 G H C I T I H S C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W: Industrial grade operating temp. -40ºC~+85ºC I : Industrial grade
X2 The material of casing X14 Flash IC brand
B : Bare (without casing) T : Toshiba SLC-NAND flash IC SLC
X3 X4 X5 Product category X15 Flash IC grade
MUM : Micro USB Module (USB DOM) C : Commercial grade
X6 X7 X8 X9 Capacity I : Industrial grade
X17 X18 MUM form-factor only
128M : 128MB 004G : 4GB
256M : 256MB 008G : 8GB VS : Vertical type Standard form factor pin pitch 2.54 mm
512M : 512MB 016G : 16GB HS : Horizontal type Standard form factor pin pitch 2.54 mm aSLC
001G : 1GB 032G : 32GB HL : Horizontal type Low-profile form factor pin pitch 2.00 mm
002G : 2GB
X19 X20 Reserved for specific requirements
X11 Controller
C : Conformal coating (optional)
H : HERMIT Series
X12 Controller version
A, B, C, D….. Module DRAM
MLC

3D-NAND

Card-drive

46 Adapter
Product specifications are subject to change without prior notice.
