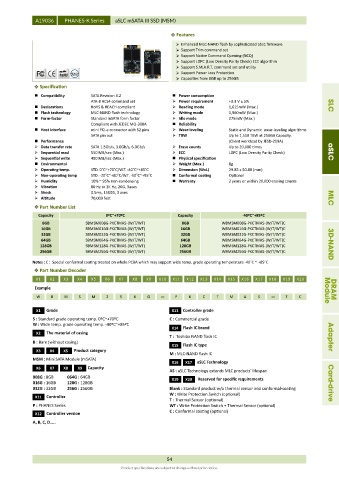

A19036 PHANES-K Series aSLC mSATA III SSD (MSM)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
ATA-8 ACS4 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 1,615mW (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 1,960mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 275mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins  Wear-leveling Static and Dynamic wear-leveling algorithms
SATA pin out  TBW Up to 1,510 TBW at 256GB Capacity.
 Performance (Client workload by JESD-219A)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Erase counts Up to 20,000 times
 Sequential read 550 MB/sec (Max.)  ECC LDPC (Low Density Parity Check) aSLC
 Sequential write 490 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 8g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxL) 29.85 x 50.80 (mm)
 Non-operating temp STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 20,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
 Shock 0.5ms, 1500G, 3 axes
 Altitude 70,000 feet MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SBMSM008G-PKCTMAS-(W/T/WT) 8GB WBMSM008G-PKCTMAS-(W/T/WT)C
16GB SBMSM016G-PKCTMAS-(W/T/WT) 16GB WBMSM016G-PKCTMAS-(W/T/WT)C
32GB SBMSM032G-PKCTMAS-(W/T/WT) 32GB WBMSM032G-PKCTMAS-(W/T/WT)C
64GB SBMSM064G-PKCTMAS-(W/T/WT) 64GB WBMSM064G-PKCTMAS-(W/T/WT)C
128GB SBMSM128G-PKCTMAS-(W/T/WT) 128GB WBMSM128G-PKCTMAS-(W/T/WT)C 3D-NAND
256GB SBMSM256G-PKCTMAS-(W/T/WT) 256GB WBMSM256G-PKCTMAS-(W/T/WT)C

Notes : C : Special conformal coating treated on whole PCBA which may support wide temp. grade operating temperature -40°C ~ +85°C
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example Module DRAM
W B M S M 2 5 6 G P K C T M A S T C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC Adapter
B : Bare (without casing)
X15 Flash IC type
X3 X4 X5 Product category
M : MLC-NAND flash IC
MSM : Mini SATA Module (mSATA)
X16 X17 aSLC Technology
X6 X7 X8 X9 Capacity
AS : aSLC Technology extends MLC products’ lifespan
008G : 8GB 064G : 64GB X19 X20 Reserved for specific requirements
016G : 16GB 128G : 128GB Card-drive
032G : 32GB 256G : 256GB Blank : Standard product w/o thermal sensor and conformal-coating
X11 Controller W : Write Protection Switch (optional)
T : Thermal Sensor (optional)
P : PHANES Series WT : Write Protection Switch + Thermal Sensor (optional)
X12 Controller version C : Conformal coating (optional)
A, B, C, D…..

54
