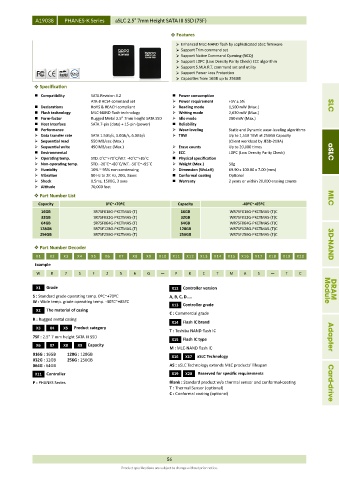

A19038 PHANES-K Series aSLC 2.5” 7mm Height SATA III SSD (7SF)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 16GB up to 256GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
ATA-8 ACS4 command set  Power requirement +5V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 1,500 mW (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 2,630 mW (Max.)
 Form-factor Rugged Metal 2.5” 7mm height SATA SSD  Idle mode 280 mW (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static and Dynamic wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 1,510 TBW at 256GB Capacity
 Sequential read 550 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 490 MB/sec (Max.)  Erase counts Up to 20,000 times
 Environmental  ECC LDPC (Low Density Parity Check) aSLC
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Weight (Max.) 50g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 69.90 x 100.00 x 7.00 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Conformal coating Optional
 Shock 0.5ms, 1500G, 3 axes  Warranty 2 years or within 20,000 erasing counts
 Altitude 70,000 feet
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
16GB SR7SF016G-PKCTMAS-(T) 16GB WR7SF016G-PKCTMAS-(T)C
32GB SR7SF032G-PKCTMAS-(T) 32GB WR7SF032G-PKCTMAS-(T)C
64GB SR7SF064G-PKCTMAS-(T) 64GB WR7SF064G-PKCTMAS-(T)C
128GB SR7SF128G-PKCTMAS-(T) 128GB WR7SF128G-PKCTMAS-(T)C
256GB SR7SF256G-PKCTMAS-(T) 256GB WR7SF256G-PKCTMAS-(T)C

 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W R 7 S F 2 5 6 G P K C T M A S T C

X1 Grade X12 Controller version Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
R : Rugged metal casing
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba NAND flash IC
7SF : 2.5” 7 mm height SATA III SSD Adapter
X15 Flash IC type
X6 X7 X8 X9 Capacity
M : MLC-NAND flash IC
016G : 16GB 128G : 128GB X16 X17 aSLC Technology
032G : 32GB 256G : 256GB
064G : 64GB AS : aSLC Technology extends MLC products’ lifespan
X11 Controller X19 X20 Reserved for specific requirements
P : PHANES Series Blank : Standard product w/o thermal sensor and conformal-coating Card-drive
T : Thermal Sensor (optional)
C : Conformal coating (optional)

56
Product specifications are subject to change without prior notice.
