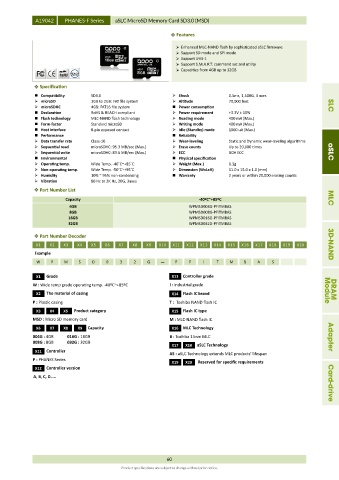

Page 67 - APRO_2019_Catalog

A19042 PHANES-F Series aSLC MicroSD Memory Card SD3.0 (MSD)

 Features

 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Support SD mode and SPI mode
 Support UHS-1
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 32GB

 Specification
 Compatibility SD3.0  Shock 0.5ms, 1,500G, 3 axes
 microSD 1GB to 2GB: FAT file system  Altitude 70,000 feet
 microSDHC 4GB: FAT16 file system  Power consumption SLC
 Declaration RoHS & REACH compliant  Power requirement +3.3V ± 10%
 Flash technology MLC-NAND flash technology  Reading mode 400 mA (Max.)
 Form-factor Standard microSD  Writing mode 400 mA (Max.)
 Host interface 8-pin exposed contact  Idle (Standby) mode 1000 uA (Max.)
 Performance  Reliability
 Data transfer rate Class-10  Wear-leveling Static and Dynamic wear-leveling algorithms
 Sequential read microSDHC: 95.3 MB/sec (Max.)  Erase counts Up to 20,000 times
 Sequential write microSDHC: 83.6 MB/sec (Max.)  ECC BCH ECC aSLC
 Environmental  Physical specification
 Operating temp. Wide Temp. -40˚C~+85˚C  Weight (Max.) 0.3g
 Non-operating temp. Wide Temp. -50˚C~+95˚C  Dimension (WxLxH) 11.0 x 15.0 x 1.0 (mm)
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 20,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
 Part Number List
Capacity -40ºC~+85ºC MLC
4GB WPMSD004G-PFITMBAS
8GB WPMSD008G-PFITMBAS
16GB WPMSD016G-PFITMBAS
32GB WPMSD032G-PFITMBAS

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20 3D-NAND
Example
W P M S D 0 3 2 G P F I T M B A S

X1 Grade X13 Controller grade
W : Wide temp grade operating temp. -40ºC~+85ºC I : Industrial grade
X2 The material of casing X14 Flash IC brand Module DRAM
P : Plastic casing T : Toshiba NAND flash IC
X3 X4 X5 Product category X15 Flash IC type
MSD : Micro SD memory card M : MLC-NAND flash IC
X6 X7 X8 X9 Capacity X16 MLC Technology
004G : 4GB 016G : 16GB B : Toshiba 15nm MLC Adapter
008G : 8GB 032G : 32GB
X17 X18 aSLC Technology
X11 Controller
AS : aSLC Technology extends MLC products’ lifespan
P : PHANES Series
X19 X20 Reserved for specific requirements
X12 Controller version
A, B, C, D….. Card-drive

60
Product specifications are subject to change without prior notice.
