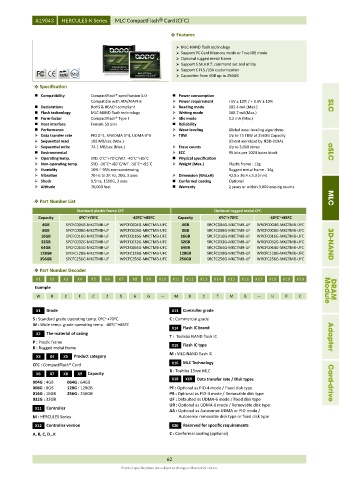

A19043 HERCULES-K Series MLC CompactFlash ® Card (CFC)

 Features

 MLC-NAND flash technology
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Capacities from 4GB up to 256GB
 Specification
 Compatibility CompactFlash® specification 6.0  Power consumption
Compatible with ATA/ATAPI-8  Power requirement +5V ± 10% / + 3.3V ± 10%
 Declarations RoHS & REACH compliant  Reading mode 185.4 mA (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 168.7 mA(Max.)
 Form-factor CompactFlash® Type I  Idle mode 1.2 mA (Max.)
 Host interface Female 50 pins  Reliability
 Performance  Wear-leveling Global wear-leveling algorithms
 Data transfer rate PIO 0~4, MWDMA 0~4, UDMA 0~6  TBW Up to 75 TBW at 256GB Capacity
 Sequential read 103 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 74.1 MB/sec (Max.)  Erase counts Up to 3,000 times
 Environmental  ECC 96 bits per 1024 bytes block aSLC
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Weight (Max.) Plastic frame : 12g
 Humidity 10% ~ 95% non-condensing Rugged metal frame : 14g
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Dimension (WxLxH) 42.8 x 36.4 x 3.3 (mm)
 Shock 0.5ms, 1500G, 3 axes  Conformal coating Optional
 Altitude 70,000 feet  Warranty 2 years or within 3,000 erasing counts

 Part Number List MLC
Standard plastic frame CFC Optional rugged metal CFC
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
4GB SPCFC004G-MKCTMB-UF WPCFC004G-MKCTMB-UFC 4GB SRCFC004G-MKCTMB-UF WRCFC004G-MKCTMB-UFC
8GB SPCFC008G-MKCTMB-UF WPCFC008G-MKCTMB-UFC 8GB SRCFC008G-MKCTMB-UF WRCFC008G-MKCTMB-UFC
16GB SPCFC016G-MKCTMB-UF WPCFC016G-MKCTMB-UFC 16GB SRCFC016G-MKCTMB-UF WRCFC016G-MKCTMB-UFC
32GB SPCFC032G-MKCTMB-UF WPCFC032G-MKCTMB-UFC 32GB SRCFC032G-MKCTMB-UF WRCFC032G-MKCTMB-UFC 3D-NAND
64GB SPCFC064G-MKCTMB-UF WPCFC064G-MKCTMB-UFC 64GB SRCFC064G-MKCTMB-UF WRCFC064G-MKCTMB-UFC
128GB SPCFC128G-MKCTMB-UF WPCFC128G-MKCTMB-UFC 128GB SRCFC128G-MKCTMB-UF WRCFC128G-MKCTMB-UFC
256GB SPCFC256G-MKCTMB-UF WPCFC256G-MKCTMB-UFC 256GB SRCFC256G-MKCTMB-UF WRCFC256G-MKCTMB-UFC

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example Module DRAM
W R C F C 2 5 6 G M K C T M B U F C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC Adapter
P : Plastic frame Flash IC type
R : Rugged metal frame X15
X3 X4 X5 Product category M : MLC-NAND flash IC
CFC : CompactFlash® Card X16 MLC Technology
B : Toshiba 15nm MLC
X6 X7 X8 X9 Capacity
X18 X19 Data transfer rate / Disk types
004G : 4GB 064G : 64GB Card-drive
008G : 8GB 128G : 128GB PF : Optional as PIO-4 mode / Fixed disk type
016G : 16GB 256G : 256GB PR : Optional as PIO-4 mode / Removable disk type
032G : 32GB UF : Defaulted as UDMA-6 mode / Fixed disk type
UR : Optional as UDMA-6 mode / Removable disk type
X11 Controller AA : Optional as Autosense UDMA or PIO mode /
M : HERCULES Series Autosense removable disk type or fixed disk type
X12 Controller version X20 Reserved for specific requirements
A, B, C, D…K C : Conformal coating (optional)

62
Product specifications are subject to change without prior notice.
