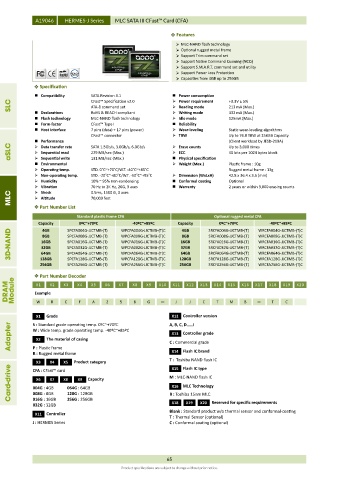

A19046 HERMES-J Series MLC SATA III CFast™ Card (CFA)

 Features
 MLC-NAND flash technology
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 4GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC CFast™ Specification v2.0  Power requirement +3.3V ± 5%
213 mA (Max.)
Reading mode

ATA-8 command set
 Declarations RoHS & REACH compliant  Writing mode 332 mA (Max.)
 Flash technology MLC-NAND flash technology  Idle mode 125mA (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static wear-leveling algorithms
CFast™ connector  TBW Up to 76.8 TBW at 256GB Capacity
 Performance (Client workload by JESD-219A)
aSLC  Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Erase counts Up to 3,000 times
229 MB/sec (Max.)
40 bits per 1024 bytes block

Sequential read
ECC

Physical specification


Sequential write
131 MB/sec (Max.)
 Environmental  Weight (Max.) Plastic frame : 10g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C Rugged metal frame : 13g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 2 years or within 3,000 erasing counts
Shock
0.5ms, 1500 G, 3 axes

MLC  Altitude 70,000 feet
 Part Number List
Standard plastic frame CFA Optional rugged metal CFA
0ºC~+70ºC
-40ºC~+85ºC
0ºC~+70ºC
Capacity SPCFA004G-JJCTMB-(T) WPCFA004G-JJCTMB-(T)C Capacity SRCFA004G-JJCTMB-(T) WRCFA004G-JJCTMB-(T)C
-40ºC~+85ºC
4GB
4GB
3D-NAND 16GB SPCFA008G-JJCTMB-(T) WPCFA008G-JJCTMB-(T)C 16GB SRCFA008G-JJCTMB-(T) WRCFA008G-JJCTMB-(T)C
8GB
8GB
WRCFA016G-JJCTMB-(T)C
SRCFA016G-JJCTMB-(T)
WPCFA016G-JJCTMB-(T)C
SPCFA016G-JJCTMB-(T)
WPCFA032G-JJCTMB-(T)C
WRCFA032G-JJCTMB-(T)C
SRCFA032G-JJCTMB-(T)
32GB
32GB
SPCFA032G-JJCTMB-(T)
WPCFA064G-JJCTMB-(T)C
64GB
64GB
SRCFA064G-JJCTMB-(T)
WRCFA064G-JJCTMB-(T)C
SPCFA064G-JJCTMB-(T)
128GB
SRCFA256G-JJCTMB-(T)
WPCFA256G-JJCTMB-(T)C
SPCFA256G-JJCTMB-(T)
256GB
256GB SPCFA128G-JJCTMB-(T) WPCFA128G-JJCTMB-(T)C 128GB SRCFA128G-JJCTMB-(T) WRCFA128G-JJCTMB-(T)C
WRCFA256G-JJCTMB-(T)C
 Part Number Decoder
DRAM Module Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X1
J
R
J
C
C
W
F
C
T
A
M
6
T
G
5
2
B
Controller version
X1 Grade A, B, C, D…..J
X12
S : Standard grade operating temp. 0ºC~+70ºC
Adapter W : Wide temp. grade operating temp. -40ºC~+85ºC C : Commercial grade
Controller grade
X13
The material of casing
X2
P : Plastic frame
R : Rugged metal frame X14 Flash IC brand
X3 X4 X5 Product category T : Toshiba NAND flash IC
Card-drive 004G : 4GB X8 064G : 64GB M : MLC-NAND flash IC
Flash IC type
X15
CFA : CFast™ card
Capacity
X9
X6
X7
MLC Technology
X16
128G : 128GB
008G : 8GB
B : Toshiba 15nm MLC
016G : 16GB
032G : 32GB 256G : 256GB X18 X19 X20 Reserved for specific requirements
X11 Controller Blank : Standard product w/o thermal sensor and conformal-coating
T : Thermal Sensor (optional)
J : HERMES Series C : Conformal coating (optional)
