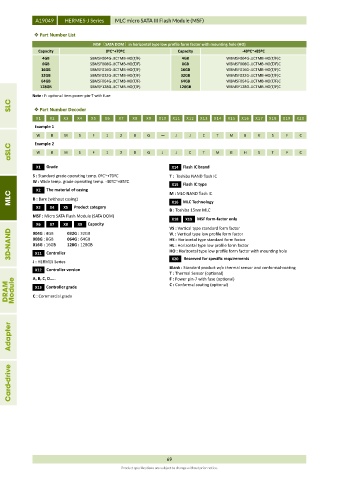

Page 76 - APRO_2019_Catalog

A19049 HERMES-J Series MLC micro SATA III Flash Module (MSF)

 Part Number List
MSF€SATA DOMin horizontal type low profile form factor with mounting hole (HO)
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTMB-HO(T/F) 4GB WBMSF004G-JJCTMB-HO(T/F)C
8GB SBMSF008G-JJCTMB-HO(T/F) 8GB WBMSF008G-JJCTMB-HO(T/F)C
16GB SBMSF016G-JJCTMB-HO(T/F) 16GB WBMSF016G-JJCTMB-HO(T/F)C
32GB SBMSF032G-JJCTMB-HO(T/F) 32GB WBMSF032G-JJCTMB-HO(T/F)C
64GB SBMSF064G-JJCTMB-HO(T/F) 64GB WBMSF064G-JJCTMB-HO(T/F)C
128GB SBMSF128G-JJCTMB-HO(T/F) 128GB WBMSF128G-JJCTMB-HO(T/F)C
Note : F: optional item power pin-7 with fuse
SLC  Part Number Decoder

X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1
W B M S F 1 2 8 G J J C T M B V S F C
Example 2
aSLC W B M S F 1 2 8 G J J C T M B H S T F C

X1 Grade X14 Flash IC brand
S : Standard grade operating temp. 0ºC~+70ºC T : Toshiba NAND flash IC
W : Wide temp. grade operating temp. -40ºC~+85ºC
X15 Flash IC type
X2 The material of casing M : MLC-NAND flash IC
MLC B : Bare (without casing) X16 MLC Technology

X3 X4 X5 Product category
B : Toshiba 15nm MLC
MSF : Micro SATA Flash Module (SATA DOM)
X18 X19 MSF form-factor only
Capacity
X9
X6 X7 X8 032G : 32GB VS : Vertical type standard form factor
3D-NAND 008G : 8GB 064G : 64GB HS : Horizontal type standard form factor
004G : 4GB
VL : Vertical type low profile form factor
128G : 128GB
016G : 16GB
HL : Horizontal type low profile form factor
HO : Horizontal type low profile form factor with mounting hole
Controller
X11
J : HERMES Series X20 Reserved for specific requirements
X12 Controller version Blank : Standard product w/o thermal sensor and conformal-coating
T : Thermal Sensor (optional)
A, B, C, D…..
F : Power pin-7 with fuse (optional)
DRAM Module C : Commercial grade C : Conformal coating (optional)
Controller grade
X13

Adapter

Card-drive

69
Product specifications are subject to change without prior notice.
