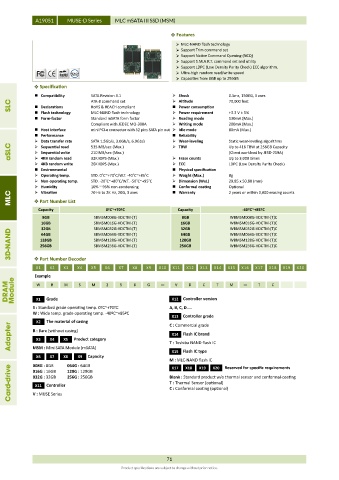

Page 78 - APRO_2019_Catalog

A19051 MUSE-D Series MLC mSATA III SSD (MSM)

 Features
 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support LDPC (Low Density Parity Check) ECC algorithm.
 Ultra-high random read/write speed
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Shock 0.5ms, 1500G, 3 axes
SLC  Declarations ATA-8 command set  Altitude 70,000 feet
Power consumption

RoHS & REACH compliant
 Flash technology MLC-NAND flash technology  Power requirement +3.3 V ± 5%
 Form-factor Standard mSATA form factor  Reading mode 130mA (Max.)
Compliant with JEDEC MO-300A  Writing mode 200mA (Max.)
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Idle mode 80mA (Max.)
 Performance  Reliability
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Wear-leveling Static wear-leveling algorithms
aSLC  Sequential read 535 MB/sec (Max.)  TBW Up to 416 TBW at 256GB Capacity
210 MB/sec (Max.)
(Client workload by JESD-219A)

Sequential write
Erase counts
32K IOPS (Max.)

Up to 3,000 times

4KB random read
 4KB random write 26K IOPS (Max.)  ECC LDPC (Low Density Parity Check)
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxL) 29.85 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
Vibration

70 Hz to 2K Hz, 20G, 3 axes
2 years or within 3,000 erasing counts

Warranty
MLC  Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SBMSM008G-VDCTM-(T) 8GB WBMSM008G-VDCTM-(T)C
16GB SBMSM016G-VDCTM-(T) 16GB WBMSM016G-VDCTM-(T)C
WBMSM032G-VDCTM-(T)C
SBMSM032G-VDCTM-(T)
32GB
32GB
3D-NAND 128GB SBMSM064G-VDCTM-(T) 128GB WBMSM064G-VDCTM-(T)C
64GB
64GB
WBMSM128G-VDCTM-(T)C
SBMSM128G-VDCTM-(T)
WBMSM256G-VDCTM-(T)C
256GB
SBMSM256G-VDCTM-(T)
256GB

X3
X2
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X4
Example
DRAM Module W Grade M S M 2 5 6 G V Controller version T M T C
D
B
C
X1
X12
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing C : Commercial grade
Adapter B : Bare (without casing) T : Toshiba NAND flash IC
Flash IC brand
X14
Product category
X3
X5
X4
MSM : Mini SATA Module (mSATA)
X6 X7 X8 X9 Capacity X15 Flash IC type
M : MLC-NAND flash IC X20 Reserved for specific requirements
008G : 8GB
064G : 64GB
Card-drive 032G : 32GB 256G : 256GB Blank : Standard product w/o thermal sensor and conformal-coating
X18
X19
X17
128G : 128GB
016G : 16GB
T : Thermal Sensor (optional)
Controller
X11
C : Conformal coating (optional)
V : MUSE Series
71
Product specifications are subject to change without prior notice.
