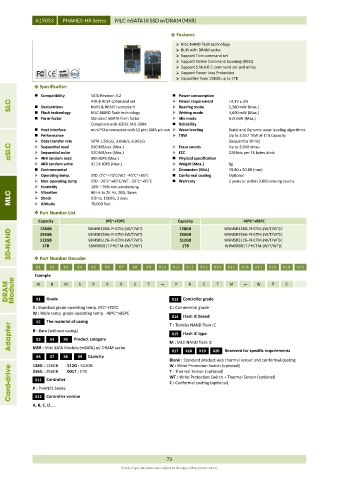

A19053 PHANES-HR Series MLC mSATA III SSD w/DRAM (MSR)

 Features
 MLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 128GB up to 1TB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC  Declarations ATA-8 ACS4 command set  Power requirement +3.3V ± 5%

2,380 mW (Max.)
RoHS & REACH compliant
Reading mode
 Flash technology MLC-NAND flash technology  Writing mode 3,600 mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 615 mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 2,057 TBW at 1TB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Sequential Write)
aSLC  Sequential read 540 MB/sec (Max.)  Erase counts Up to 3,000 times
ECC
Sequential write


120 bits per 2K bytes block
520 MB/sec (Max.)
Physical specification
4KB random read
90K IOPS (Max.)


 4KB random write 91.5K IOPS (Max.)  Weight (Max.) 8g
 Environmental  Dimension (WxL) 29.80 x 50.80 (mm)
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Conformal coating Optional
 Non-operating temp STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Warranty 2 years or within 3,000 erasing counts
 Humidity 10% ~ 95% non-condensing
Vibration
80 Hz to 2K Hz, 20G, 3axes

MLC  Shock 0.5ms, 1500G, 3 axes
70,000 feet
Altitude

 Part Number List
-40ºC~+85ºC
0ºC~+70ºC
Capacity SBMSR128G-PHCTM-(W/T/WT) Capacity WBMSR128G-PHCTM-(W/T/WT)C
128GB
128GB
3D-NAND 256GB SBMSR256G-PHCTM-(W/T/WT) 256GB WBMSR256G-PHCTM-(W/T/WT)C
SBMSR512G-PHCTM-(W/T/WT)
WBMSR512G-PHCTM-(W/T/WT)C
512GB
512GB
SBMSR001T-PHCTM-(W/T/WT)
1TB
1TB
WBMSR001T-PHCTM-(W/T/WT)C

X3
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X2
X4
Example
DRAM Module W Grade M S R 0 0 1 T P Controller grade T M W T C
B
H
C
X13
X1
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing T : Toshiba NAND flash IC
Adapter B : Bare (without casing) M : MLC-NAND flash IC
Flash IC type
X15
Product category
X3
X5
X4
MSR : Mini SATA Module (mSATA) w/ DRAM cache
X6 X7 X8 X9 Capacity X17 X18 X19 X20 Reserved for specific requirements
Blank : Standard product w/o thermal sensor and conformal-coating
128G : 128GB
512G : 512GB
W : Write Protection Switch (optional)
Card-drive P : PHANES Series WT : Write Protection Switch + Thermal Sensor (optional)
256G : 256GB
001T : 1TB
T : Thermal Sensor (optional)
Controller
X11
C : Conformal coating (optional)
Controller version
X12
A, B, C, D…..
73
Product specifications are subject to change without prior notice.
