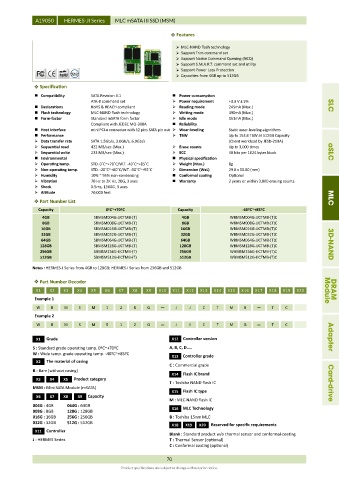

A19050 HERMES-JI Series MLC mSATA III SSD (MSM)

 Features

 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 4GB up to 512GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
ATA-8 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 245mA (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 390mA (Max.)
 Form-factor Standard mSATA form factor  Idle mode 151mA (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 153.6 TBW at 512GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 422 MB/sec (Max.)  Erase counts Up to 3,000 times
 Sequential write 233 MB/sec (Max.)  ECC 40 bits per 1024 bytes block aSLC
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxL) 29.8 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 2 years or within 3,000 erasing counts
 Shock 0.5ms, 1500G, 3 axes
 Altitude 70,000 feet
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSM004G-JJCTMB-(T) 4GB WBMSM004G-JJCTMB-(T)C
8GB SBMSM008G-JJCTMB-(T) 8GB WBMSM008G-JJCTMB-(T)C
16GB SBMSM016G-JJCTMB-(T) 16GB WBMSM016G-JJCTMB-(T)C
32GB SBMSM032G-JJCTMB-(T) 32GB WBMSM032G-JJCTMB-(T)C
64GB SBMSM064G-JJCTMB-(T) 64GB WBMSM064G-JJCTMB-(T)C
128GB SBMSM128G-JJCTMB-(T) 128GB WBMSM128G-JJCTMB-(T)C 3D-NAND
256GB SBMSM256G-JICTMB-(T) 256GB WBMSM256G-JICTMB-(T)C
512GB SBMSM512G-JICTMB-(T) 512GB WBMSM512G-JICTMB-(T)C
Notes : HERMES-J Series from 4GB to 128GB; HERMES-I Series from 256GB and 512GB

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20 Module DRAM
Example 1
W B M S M 1 2 8 G J J C T M B T C
Example 2
W B M S M 5 1 2 G J I C T M B T C

X1 Grade X12 Controller version Adapter
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing)
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba NAND flash IC Card-drive
MSM : Mini SATA Module (mSATA)
X15 Flash IC type
X6 X7 X8 X9 Capacity
M : MLC-NAND flash IC
004G : 4GB 064G : 64GB MLC Technology
008G : 8GB 128G : 128GB X16
016G : 16GB 256G : 256GB B : Toshiba 15nm MLC
032G : 32GB 512G : 512GB X18 X19 X20 Reserved for specific requirements
X11 Controller
Blank : Standard product w/o thermal sensor and conformal-coating
J : HERMES Series T : Thermal Sensor (optional)
C : Conformal coating (optional)

70
Product specifications are subject to change without prior notice.
