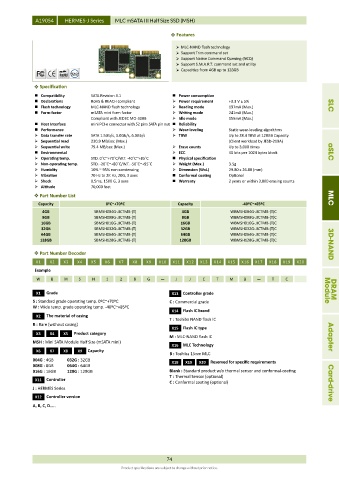

A19054 HERMES-J Series MLC mSATA III Half Size SSD (MSH)

 Features

 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 128GB

 Specification
 Compatibility SATA Revision 3.1  Power consumption
 Declarations RoHS & REACH compliant  Power requirement +3.3 V ± 5%
 Flash technology MLC-NAND flash technology  Reading mode 197mA (Max.) SLC
 Form-factor mSATA mini form factor  Writing mode 241mA (Max.)
Compliant with JEDEC MO-300B  Idle mode 155mA (Max.)
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Reliability
 Performance  Wear-leveling Static wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 38.4 TBW at 128GB Capacity
 Sequential read 230.9 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 79.4 MB/sec (Max.)  Erase counts Up to 3,000 times
 Environmental  ECC 40 bits per 1024 bytes block aSLC
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Weight (Max.) 3.5g
 Humidity 10% ~ 95% non-condensing  Dimension (WxL) 29.80 x 26.80 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty 2 years or within 3,000 erasing counts
 Altitude 70,000 feet
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSH004G-JJCTMB-(T) 4GB WBMSH004G-JJCTMB-(T)C
8GB SBMSH008G-JJCTMB-(T) 8GB WBMSH008G-JJCTMB-(T)C
16GB SBMSH016G-JJCTMB-(T) 16GB WBMSH016G-JJCTMB-(T)C
32GB SBMSH032G-JJCTMB-(T) 32GB WBMSH032G-JJCTMB-(T)C
64GB SBMSH064G-JJCTMB-(T) 64GB WBMSH064G-JJCTMB-(T)C
128GB SBMSH128G-JJCTMB-(T) 128GB WBMSH128G-JJCTMB-(T)C 3D-NAND

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S H 1 2 8 G J J C T M B T C

X1 Grade X13 Controller grade Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC
B : Bare (without casing)
X15 Flash IC type
X3 X4 X5 Product category
M : MLC-NAND flash IC Adapter
MSH : Mini SATA Module Half Size (mSATA mini)
X16 MLC Technology
X6 X7 X8 X9 Capacity
B : Toshiba 15nm MLC
004G : 4GB 032G : 32GB X18 X19 X20 Reserved for specific requirements
008G : 8GB 064G : 64GB
016G : 16GB 128G : 128GB Blank : Standard product w/o thermal sensor and conformal-coating
T : Thermal Sensor (optional)
X11 Controller C : Conformal coating (optional) Card-drive
J : HERMES Series
X12 Controller version
A, B, C, D…..

74
Product specifications are subject to change without prior notice.
