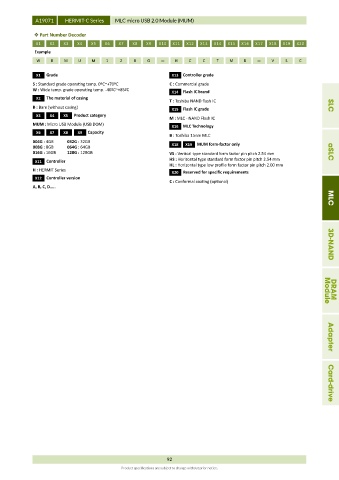

A19071 HERMIT-C Series MLC micro USB 2.0 Module (MUM)

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M U M 1 2 8 G H C C T M B V S C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC
B : Bare (without casing) X15 Flash IC grade SLC
X3 X4 X5 Product category
M : MLC - NAND Flash IC
MUM : Micro USB Module (USB DOM)
X16 MLC Technology
X6 X7 X8 X9 Capacity
B : Toshiba 15nm MLC
004G : 4GB 032G : 32GB MUM form-factor only
008G : 8GB 064G : 64GB X18 X19
016G : 16GB 128G : 128GB VS : Vertical type standard form factor pin pitch 2.54 mm aSLC
X11 Controller HS : Horizontal type standard form factor pin pitch 2.54 mm
HL : Horizontal type low profile form factor pin pitch 2.00 mm
H : HERMIT Series X20 Reserved for specific requirements
X12 Controller version
C : Conformal coating (optional)
A, B, C, D….. Module DRAM

MLC

3D-NAND

Card-drive

92 Adapter
Product specifications are subject to change without prior notice.
