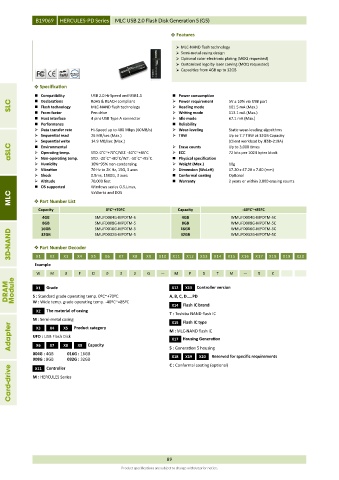

Page 96 - APRO_2020_Catalog

B19069 HERCULES-PD Series MLC USB 2.0 Flash Disk Generation 5 (G5)

 Features

 MLC-NAND flash technology
 Semi-metal casing design
 Optional color electronic plating (MOQ requested)
 Customized logo by laser carving (MOQ requested)
 Capacities from 4GB up to 32GB

 Specification
 Compatibility USB 2.0 Hi-Speed and USB1.1  Power consumption
SLC  Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port
Flash technology

MLC-NAND flash technology
101.5 mA (Max.)
Reading mode

 From-factor Pen drive  Writing mode 113.1 mA (Max.)
 Host interface 4 pins USB Type A connector  Idle mode 67.1 mA (Max.)
 Performance  Reliability
 Data transfer rate Hi-Speed up to 480 Mbps (60MB/s)  Wear-leveling Static wear-leveling algorithms
 Sequential read 26 MB/sec (Max.)  TBW Up to 7.7 TBW at 32GB Capacity
 Sequential write 14.9 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Environmental STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Erase counts Up to 3,000 times
72 bits per 1024 bytes block

ECC

Operating temp.
STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C

Physical specification
Non-operating temp.

 Humidity 10%~95% non-condensing  Weight (Max.) 10g
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Dimension (WxLxH) 17.20 x 47.20 x 7.80 (mm)
 Shock 0.5ms, 1500G, 3 axes  Conformal coating Optional
 Altitude 70,000 feet  Warranty 2 years or within 3,000 erasing counts
 OS supported Windows series O.S.Linux,
VxWorks and DOS
MLC  Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SMUFD004G-MPDTM-5 4GB WMUFD004G-MPDTM-5C
8GB SMUFD008G-MPDTM-5 16GB WMUFD008G-MPDTM-5C
8GB
WMUFD016G-MPDTM-5C
SMUFD016G-MPDTM-5
16GB
3D-NAND  Part Number Decoder SMUFD032G-MPDTM-5 32GB WMUFD032G-MPDTM-5C
32GB
X1
Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
W M U F D 0 3 2 G M P D T M 5 C
DRAM Module S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..PD Controller version
Grade
X1
X13
X12
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC
M : Semi-metal casing Product category X15 Flash IC type
Adapter UFD : USB Flash Disk X9 Capacity M : MLC-NAND flash IC
X5
X3
X4
Housing Generation
X17
X8
X6
X7
004G : 4GB 016G : 16GB 5 : Generation 5 housing
X20
X19
X18
Reserved for specific requirements
008G : 8GB 032G : 32GB C : Conformal coating (optional)
Card-drive M : HERCULES Series
Controller
X11
