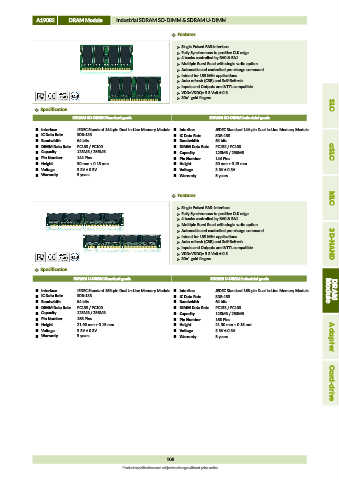

A19083 DRAM Module Industrial SDRAM SO-DIMM & SDRAM U-DIMM

 Features

 Single Pulsed RAS-interface
 Fully Synchronous to positive CLK edge
 4 banks controlled by BA0 & BA1
 Multiple Burst Read with single write option
 Automatic and controlled pre-charge command
 Intend for 133 MHz applications
 Auto refresh (CBR) and Self-Refresh
 Inputs and Outputs are LVTTL compatible
 VDD=VDDQ= 3.3 Volt ± 0.3
 30u” gold fingers
 Specification SLC
SDRAM SO-DIMM Standard grade SDRAM SO-DIMM Industrial grade

 Interface JEDEC Standard 144-pin Dual In-Line Memory Module  Interface JEDEC Standard 144-pin Dual In-Line Memory Module
 IC Data Rate SDR-133  IC Data Rate SDR-133
 Bandwidth 64 bits  Bandwidth 64 bits
 DIMM Data Rate PC133 / PC100  DIMM Data Rate PC133 / PC100
 Capacity 128MB / 256MB  Capacity 128MB / 256MB aSLC
 Pin Number 144 Pins  Pin Number 144 Pins
 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 3.3V ± 0.3V  Voltage 3.3V ± 0.3V
 Warranty 5 years  Warranty 5 years

 Features MLC

 Single Pulsed RAS- interface
 Fully Synchronous to positive CLK edge
 4 banks controlled by BA0 & BA1
 Multiple Burst Read with single write option
 Automatic and controlled pre-charge command
 Intend for 133 MHz applications
 Auto refresh (CBR) and Self-Refresh 3D-NAND
 Inputs and Outputs are LVTTL compatible
 VDD=VDDQ= 3.3 Volt ± 0.3
 30u” gold fingers
 Specification
SDRAM U-DIMM Standard grade SDRAM U-DIMM Industrial grade

 Interface JEDEC Standard 168-pin Dual In-Line Memory Module  Interface JEDEC Standard 168-pin Dual In-Line Memory Module Module DRAM
 IC Data Rate SDR-133  IC Data Rate SDR-133
 Bandwidth 64 bits  Bandwidth 64 bits
 DIMM Data Rate PC133 / PC100  DIMM Data Rate PC133 / PC100
 Capacity 128MB / 256MB  Capacity 128MB / 256MB
 Pin Number 168 Pins  Pin Number 168 Pins
 Height 21.90 mm + 0.15 mm  Height 21.90 mm + 0.15 mm
 Voltage 3.3V ± 0.3V  Voltage 3.3V ± 0.3V
 Warranty 5 years  Warranty 5 years Adapter
