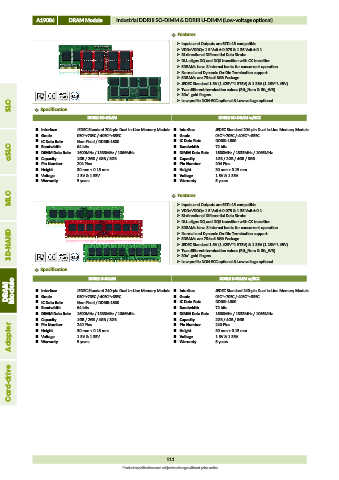

Page 118 - APRO_2020_Catalog

A19086 DRAM Module Industrial DDRIII SO-DIMM & DDRIII U-DIMM (Low-voltage optional)

 Features
 Inputs and Outputs are SSTL-15 compatible
 VDD=VDDQ= 1.5 Volt ± 0.075 & 1.35 Volt ± 0.1
 Bi-directional Differential Data Strobe
 DLL aligns DQ and DQS transition with CK transition
 SDRAMs have 8 internal banks for concurrent operation
 Normal and Dynamic On-Die Termination support
 SDRAMs are 78-ball BGA Package
 JEDEC Standard 1.5V (1.425V~1.575V) & 1.35V (1.28V~1.45V)
 Two different termination values (Rtt_Nom & Rtt_WR)
 30u” gold fingers.
SLC  Specification  Low-profile NON-ECC optional & Low-voltage optional

DDRIII SO-DIMM DDRIII SO-DIMM w/ECC

 Interface JEDEC Standard 204-pin Dual In-Line Memory Module  Interface JEDEC Standard 204-pin Dual In-Line Memory Module
 Grade 0ºC~+70ºC /-40ºC~+85ºC  Grade 0ºC~+70ºC /-40ºC~+85ºC
 IC Data Rate Non-Fixed / DDRIII-1600  IC Data Rate DDRIII-1600
aSLC  Bandwidth 64 bits  Bandwidth 72 bits
DIMM Data Rate
1600MHz / 1333MHz / 1066MHz


DIMM Data Rate
1600MHz / 1333MHz / 1066MHz
Capacity

1GB / 2GB / 4GB / 8GB
1GB / 2GB / 4GB / 8GB
Capacity

 Pin Number 204 Pins  Pin Number 204 Pins
 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 1.5V & 1.35V  Voltage 1.5V & 1.35V
 Warranty 5 years  Warranty 5 years
MLC   Inputs and Outputs are SSTL-15 compatible
Features
 VDD=VDDQ= 1.5 Volt ± 0.075 & 1.35 Volt ± 0.1
 Bi-directional Differential Data Strobe
 DLL aligns DQ and DQS transition with CK transition
 SDRAMs have 8 internal banks for concurrent operation
3D-NAND  SDRAMs are 78-ball BGA Package
 Normal and Dynamic On-Die Termination support
 JEDEC Standard 1.5V (1.425V~1.575V) & 1.35V (1.28V~1.45V)
 Two different termination values (Rtt_Nom & Rtt_WR)
 30u” gold fingers.
 Low-profile NON-ECC optional & Low-voltage optional
 Specification DDRIII U-DIMM DDRIII U-DIMM w/ECC
DRAM Module  Interface JEDEC Standard 240-pin Dual In-Line Memory Module  Interface JEDEC Standard 240-pin Dual In-Line Memory Module
0ºC~+70ºC /-40ºC~+85ºC
Grade
0ºC~+70ºC /-40ºC~+85ºC
Grade



Bandwidth
 IC Data Rate Non-Fixed / DDRIII-1600  IC Data Rate DDRIII-1600
72 bits
64 bits
Bandwidth

 DIMM Data Rate 1600MHz / 1333MHz / 1066MHz  DIMM Data Rate 1600MHz / 1333MHz / 1066MHz
 Capacity 1GB / 2GB / 4GB / 8GB  Capacity 2GB / 4GB / 8GB

Pin Number
Adapter  Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
240 Pins

240 Pins
Pin Number
Voltage
1.5V & 1.35V
Voltage


1.5V & 1.35V
Warranty
Warranty

5 years

5 years
Card-drive
111
Product specifications are subject to change without prior notice.
