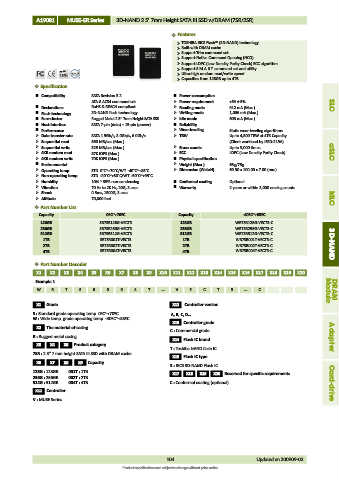

A19081 MUSE-ER Series 3D-NAND 2.5” 7mm Height SATA III SSD w/DRAM (7SR/2SR)

 Features
 TOSHIBA BiCS Flash™ (3D-NAND) technology
 Built with DRAM cache
 Support Trim command set
 Support Na�ve Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm.
 Support S.M.A.R.T. command set and u�lity
 Ultra-high random read/write speed
 Capaci�es from 128GB up to 4TB
 Specifica�on
 Compa�bility SATA Revision 3.2  Power consump�on
ATA-8 ACS4 command set  Power requirement +5V ± 5%
 Declara�ons RoHS & REACH compliant  Reading mode 912 mA (Max.) SLC
 Flash technology 3D-NAND flash technology  Wri�ng mode 1,066 mA (Max.)
 Form-factor Rugged Metal 2.5” 7mm Height SATA SSD  Idle mode 603 mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Sta�c wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 4,800 TBW at 4TB Capacity
 Sequen�al read 560 MB/sec (Max.) (Client workload by JESD-219A)
 Sequen�al write 525 MB/sec (Max.)  Erase counts Up to 3,000 �mes
 4KB random read 87K IOPS (Max.)  ECC LDPC (Low Density Parity Check) aSLC
 4KB random write 70K IOPS (Max.)  Physical specifica�on
 Environmental  Weight (Max.) 65g/75g
 Opera�ng temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 69.90 x 100.00 x 7.00 (mm)
 Non-opera�ng temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C
 Humidity 10% ~ 95% non-condensing  Conformal coa�ng Op�onal
 Vibra�on 70 Hz to 2K Hz, 20G, 3 axes  Warranty 2 years or within 3,000 erasing counts
 Shock 0.5ms, 1500G, 3 axes
 Al�tude 70,000 feet MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
128GB SR7SR128G-VECT3 128GB WR7SR128G-VECT3-C
256GB SR7SR256G-VECT3 256GB WR7SR256G-VECT3-C
512GB SR7SR512G-VECT3 512GB WR7SR512G-VECT3-C
1TB SR7SR001T-VECT3 1TB WR7SR001T-VECT3-C
2TB SR7SR002T-VECT3 2TB WR7SR002T-VECT3-C 3D-NAND
4TB SR7SR004T-VECT3 4TB WR7SR004T-VECT3-C

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1
W R 7 S R 0 0 4 T V E C T 3 C Module DRAM

X1 Grade X12 Controller version
S : Standard grade opera�ng temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade opera�ng temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
R : Rugged metal casing Adapter
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba NAND flash IC
7SR : 2.5” 7 mm height SATA III SSD with DRAM cache
X15 Flash IC type
X6 X7 X8 X9 Capacity
3 : BiCS 3D-NAND Flash IC
128G : 128GB 001T : 1TB X17 X18 X19 X20 Reserved for specific requirements
256G : 256GB 002T : 2TB
512G : 512GB 004T : 4TB C : Conformal coa�ng (op�onal) Card-drive
X11 Controller
V : MUSE Series

104 Updated on 200909-02
Product specifications are subject to change without prior notice.
