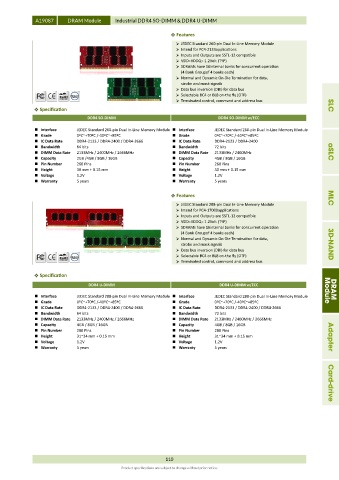

Page 117 - APRO_2019_Catalog

A19087 DRAM Module Industrial DDR4 SO-DIMM & DDR4 U-DIMM

 Features
 JEDEC Standard 260-pin Dual In-Line Memory Module
 Intend for PC4-2133applications
 Inputs and Outputs are SSTL-12 compatible
 VDD=VDDQ= 1.2Volt (TYP)
 SDRAMs have 16internal banks for concurrent operation
(4 Bank Groupof 4 banks each)
 Normal and Dynamic On-Die Termination for data,
strobe and mask signals
 Data bus inversion (DBI) for data bus
 Selectable BC4 or BL8 on-the fly (OTF)
 Terminated control, command and address bus
 Specification SLC
DDR4 SO-DIMM DDR4 SO-DIMM w/ECC

 Interface JEDEC Standard 260-pin Dual In-Line Memory Module  Interface JEDEC Standard 260-pin Dual In-Line Memory Module
 Grade 0ºC~+70ºC /-40ºC~+85ºC  Grade 0ºC~+70ºC /-40ºC~+85ºC
 IC Data Rate DDR4-2133 / DDR4-2400 / DDR4-2666  IC Data Rate DDR4-2133 / DDR4-2400
 Bandwidth 64 bits  Bandwidth 72 bits
 DIMM Data Rate 2133MHz / 2400MHz / 2666MHz  DIMM Data Rate 2133MHz / 2400MHz aSLC
 Capacity 2GB /4GB / 8GB / 16GB  Capacity 4GB / 8GB / 16GB
 Pin Number 260 Pins  Pin Number 260 Pins
 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 1.2V  Voltage 1.2V
 Warranty 5 years  Warranty 5 years

 Features MLC
 JEDEC Standard 288-pin Dual In-Line Memory Module
 Intend for PC4-17000applications
 Inputs and Outputs are SSTL-12 compatible
 VDD=VDDQ= 1.2Volt (TYP)
 SDRAMs have 16internal banks for concurrent operation
(4 Bank Groupof 4 banks each)
 Normal and Dynamic On-Die Termination for data,
strobe and mask signals 3D-NAND
 Data bus inversion (DBI) for data bus
 Selectable BC4 or BL8 on-the fly (OTF)
 Terminated control, command and address bus

 Specification
DDR4 U-DIMM DDR4 U-DIMM w/ECC
 Interface JEDEC Standard 288-pin Dual In-Line Memory Module  Interface JEDEC Standard 288-pin Dual In-Line Memory Module Module DRAM
 Grade 0ºC~+70ºC /-40ºC~+85ºC  Grade 0ºC~+70ºC /-40ºC~+85ºC
 IC Data Rate DDR4-2133 / DDR4-2400 / DDR4-2666  IC Data Rate DDR4-2133 / DDR4-2400 / DDR4-2666
 Bandwidth 64 bits  Bandwidth 72 bits
 DIMM Data Rate 2133MHz / 2400MHz / 2666MHz  DIMM Data Rate 2133MHz / 2400MHz / 2666MHz
 Capacity 4GB / 8GB / 16GB  Capacity 4GB / 8GB / 16GB
 Pin Number 288 Pins  Pin Number 288 Pins
 Height 31~34 mm + 0.15 mm  Height 31~34 mm + 0.15 mm Adapter
 Voltage 1.2V  Voltage 1.2V
 Warranty 5 years  Warranty 5 years Card-drive

110
Product specifications are subject to change without prior notice.
