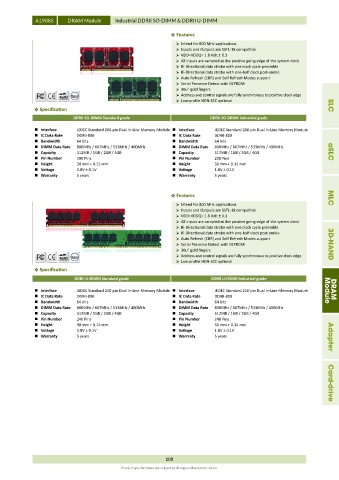

A19085 DRAM Module Industrial DDRII SO-DIMM & DDRII U-DIMM

 Features
 Intend for 800 MHz applications
 Inputs and Outputs are SSTL-18 compatible
 VDD=VDDQ= 1.8 Volt ± 0.1
 All inputs are sampled at the positive going edge of the system clock
 Bi-Directional data strobe with one clock cycle preamble
 Bi-Directional data strobe with one-half clock post-amble
 Auto Refresh (CBR) and Self Refresh Modes support
 Serial Presence Detect with EEPROM
 30u” gold fingers
 Address and control signals are fully synchronous to positive clock edge
 Low-profile NON-ECC optional
 Specification SLC
DDRII SO-DIMM Standard grade DDRII SO-DIMM Industrial grade

 Interface JEDEC Standard 200-pin Dual In-Line Memory Module  Interface JEDEC Standard 200-pin Dual In-Line Memory Module
 IC Data Rate DDRII-800  IC Data Rate DDRII-800
 Bandwidth 64 bits  Bandwidth 64 bits
 DIMM Data Rate 800MHz / 667MHz / 533MHz / 400MHz  DIMM Data Rate 800MHz / 667MHz / 533MHz / 400MHz
 Capacity 512MB / 1GB / 2GB / 4GB  Capacity 512MB / 1GB / 2GB / 4GB aSLC
 Pin Number 200 Pins  Pin Number 200 Pins
 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 1.8V ± 0.1V  Voltage 1.8V ± 0.1V
 Warranty 5 years  Warranty 5 years

 Features MLC
 Intend for 800 MHz applications
 Inputs and Outputs are SSTL-18 compatible
 VDD=VDDQ= 1.8 Volt ± 0.1
 All inputs are sampled at the positive going edge of the system clock
 Bi-Directional data strobe with one clock cycle preamble
 Bi-Directional data strobe with one-half clock post-amble
 Auto Refresh (CBR) and Self Refresh Modes support
 Serial Presence Detect with EEPROM 3D-NAND
 30u” gold fingers
 Address and control signals are fully synchronous to positive clock edge
 Low-profile NON-ECC optional
 Specification
DDRII U-DIMM Standard grade DDRII U-DIMM Industrial grade

 Interface JEDEC Standard 240-pin Dual In-Line Memory Module  Interface JEDEC Standard 240-pin Dual In-Line Memory Module Module DRAM
 IC Data Rate DDRII-800  IC Data Rate DDRII-800
 Bandwidth 64 bits  Bandwidth 64 bits
 DIMM Data Rate 800MHz / 667MHz / 533MHz / 400MHz  DIMM Data Rate 800MHz / 667MHz / 533MHz / 400MHz
 Capacity 512MB / 1GB / 2GB / 4GB  Capacity 512MB / 1GB / 2GB / 4GB
 Pin Number 240 Pins  Pin Number 240 Pins
 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 1.8V ± 0.1V  Voltage 1.8V ± 0.1V
 Warranty 5 years  Warranty 5 years Adapter

Card-drive

108
Product specifications are subject to change without prior notice.
