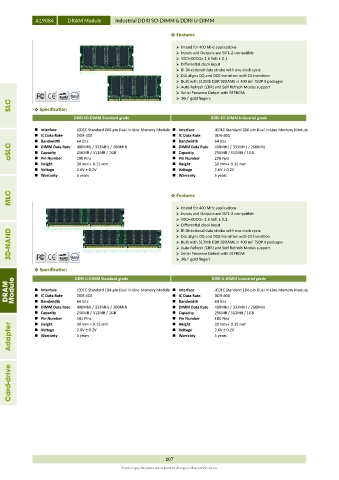

Page 114 - APRO_2019_Catalog

A19084 DRAM Module Industrial DDRI SO-DIMM & DDRI U-DIMM

 Features

 Intend for 400 MHz applications
 Inputs and Outputs are SSTL-2 compatible
 VDD=VDDQ= 2.6 Volt ± 0.1
 Differential clock input
 Bi-Directional data strobe with one clock cycle
 DLL aligns DQ and DQS transition with CK transition
 Built with 512Mb DDR SDRAMs in 400 mil TSOP II packages
 Auto Refresh (CBR) and Self Refresh Modes support
 Serial Presence Detect with EEPROM
 30u” gold fingers
SLC  Specification

DDRI SO-DIMM Standard grade DDRI SO-DIMM Industrial grade

 Interface JEDEC Standard 200-pin Dual In-Line Memory Module  Interface JEDEC Standard 200-pin Dual In-Line Memory Module
 IC Data Rate DDR-400  IC Data Rate DDR-400
 Bandwidth 64 bits  Bandwidth 64 bits
aSLC  DIMM Data Rate 400MHz / 333MHz / 266MHz  DIMM Data Rate 400MHz / 333MHz / 266MHz
256MB / 512MB / 1GB

Capacity
256MB / 512MB / 1GB

Capacity
200 Pins
Pin Number
200 Pins

Pin Number

 Height 30 mm + 0.15 mm  Height 30 mm + 0.15 mm
 Voltage 2.6V ± 0.2V  Voltage 2.6V ± 0.2V
 Warranty 5 years  Warranty 5 years
MLC  Features
 Intend for 400 MHz applications
 Inputs and Outputs are SSTL-2 compatible
 VDD=VDDQ= 2.6 Volt ± 0.1
 Differential clock input
3D-NAND  DLL aligns DQ and DQS transition with CK transition
 Bi-Directional data strobe with one clock cycle
 Built with 512Mb DDR SDRAMs in 400 mil TSOP II packages
 Auto Refresh (CBR) and Self Refresh Modes support
 Serial Presence Detect with EEPROM
 Specification DDRI U-DIMM Standard grade  30u” gold fingers DDRI U-DIMM Industrial grade

DRAM Module  Interface JEDEC Standard 184-pin Dual In-Line Memory Module  Interface JEDEC Standard 184-pin Dual In-Line Memory Module

IC Data Rate
DDR-400
DDR-400
IC Data Rate



DIMM Data Rate
DIMM Data Rate
 Bandwidth 64 bits  Bandwidth 64 bits
400MHz / 333MHz / 266MHz
400MHz / 333MHz / 266MHz

 Capacity 256MB / 512MB / 1GB  Capacity 256MB / 512MB / 1GB
 Pin Number 184 Pins  Pin Number 184 Pins

30 mm + 0.15 mm
Height
Height

30 mm + 0.15 mm
Adapter  Voltage 2.6V ± 0.2V  Voltage 2.6V ± 0.2V
Warranty
5 years
Warranty


5 years
Card-drive
