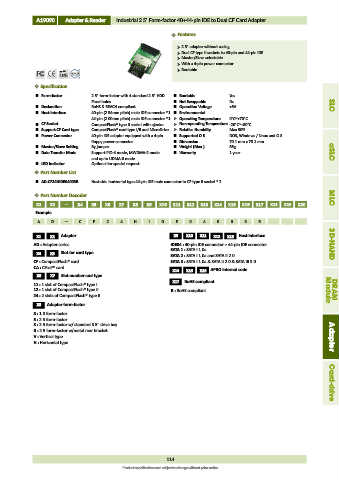

A19090 Adapter & Reader Industrial 2.5” Form-factor 40+44-pin IDE to Dual CF Card Adapter

 Features

 2.5” adapter without casing
 Dual CF type II sockets to 40-pin and 44-pin IDE
 Master/Slave selectable
 With a 4-pin power connector
 Bootable

 Specification
 Form-factor 2.5” form-factor with 4 standard 2.5” HDD  Bootable Yes
Fixed holes  Hot Swappable No
 Declaration RoHS & REACH compliant  Operation Voltage +5V SLC
 Host interface 40-pin (2.54mm pitch) male IDE connector *1  Environmental
44-pin (2.00mm pitch) male IDE connector *1  Operating Temperature 0°C~+70°C
 CF Socket CompactFlash® type II socket with ejector  Non-operating Temperature -20°C~+80°C
 Support CF Card type CompactFlash® card type I/II and MicroDrive  Relative Humidity Max 90%
 Power Connector 40-pin IDE adapter equipped with a 4-pin  Supported O.S. DOS, Windows / Linux and O.S.
floppy power connector  Dimension 70.1 mm x 78.1 mm
 Master/Slave Setting By jumper  Weight (Max.) 55g
 Data Transfer Mode Support PIO-4 mode, MWDMA-2 mode  Warranty 1 year aSLC
and up to UDMA-6 mode
 LED Indicator Optional for special request
 Part Number List
 AD-CF24HIDE04003R Host side horizontal type 44-pin IDE male connector to CF type II socket * 2

 Part Number Decoder MLC
X1 X2 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
A D C F 2 4 H I D E 0 4 0 0 3 R

X1 X2 Adapter X9 X10 X11 X12 X13 Host interface
AD : Adapter series IDE04 : 40-pin IDE connector + 44-pin IDE connector 3D-NAND
SATA 1 : SATA I 1.0a
X4 X5 Slot for card type SATA 2 : SATA I 1.0a and SATA II 2.0
CF : CompactFlash® card SATA 3 : SATA I 1.0a & SATA II 2.0 & SATA III 3.0
CA : CFast™ card
X14 X15 X16 APRO Internal code
X6 X7 Slot number and type
X17 RoHS compliant
11 : 1 slot of CompactFlash® type I
12 : 1 slot of CompactFlash® type II R : RoHS compliant Module DRAM
24 : 2 slots of CompactFlash® type II
X8 Adapter form-factor
8 : 1.8 form-factor
5 : 2.5 form-factor
3 : 2.5 form-factor w/ standard 3.5" drive bay
R : 2.5 form-factor w/metal rear bracket
V : Vertical type Adapter
H : Horizontal type Card-drive
