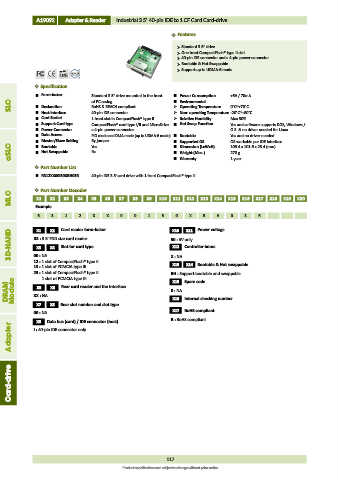

Page 124 - APRO_2019_Catalog

A19092 Adapter & Reader Industrial 3.5” 40-pin IDE to 1 CF Card Card-drive

 Features

 Standard 3.5” drive
 One front CompactFlash® type II slot
 40-pin IDE connector and a 4-pin power connector
 Bootable & Hot Swappable
 Support up to UDMA-6 mode

 Specification
 Form-factor Standard 3.5" drive mounted in the front  Power Consumption +5V / 70mA
SLC  Declaration of PC casing  Environmental 0°C~+70°C
Operating Temperature

RoHS & REACH compliant
 Host interface 40-pin IDE connector  Non- operating Temperature -20°C~+80°C
 Card Socket 1 front slot in CompactFlash® type II  Relative Humidity Max 90%
 Support Card type CompactFlash® card type I/II and MicroDrive  Hot Swap Function Yes and software supports DOS, Windows /
 Power Connector a 4-pin power connector O.S. & no driver needed for Linux
 Data Access PIO mode and DMA mode (up to UDMA-6 mode)  Bootable Yes and no driver needed
 Master/Slave Setting By jumper  Supported OS OS workable per IDE interface
aSLC  Bootable Yes  Dimension (LxWxH) 109.4 x 101.6 x 25.4 (mm)
Hot Swappable
No


Weight (Max.)
270 g

Warranty
1 year
 Part Number List
 R312XX00I50XBH03R 40-pin IDE 3.5"card drive with 1 front CompactFlash® type II
 Part Number Decoder
MLC X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
X
2
1
H
R 3 Card reader form-factor X 0 0 1 5 0 X Power voltage 0 3 R
B
X1
X10
X2
X11
3D-NAND R3 : 3.5"FDD size card reader 50 : 5V only
Controller brand
X12
Slot for card type
X4
X3
00 : NA
12 : 1 slot of CompactFlash® type II X : NA X14 Bootable & Hot swappable
X13
13 : 1 slot of PCMCIA type III
25 : 1 slot of CompactFlash® type II BH : Support bootable and swappable
1 slot of PCMCIA type III
DRAM Module XX : NA X6 Rear card reader and the interface 0 : NA Internal checking number
X15
Spare code
X5
X16
Rear slot number and slot type
X8
X7
X17 RoHS compliant
00 : NA
X9 Data bus (card) / IDE connector (host) R : RoHS compliant
Adapter I : 40-pin IDE connector only
Card-drive
