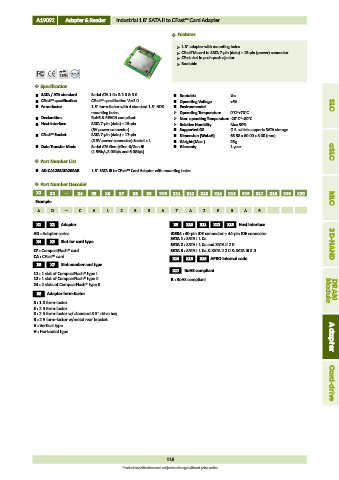

A19092 Adapter & Reader Industrial 1.8” SATA II to CFast™ Card Adapter

 Features

 1.8” adapter with mounting holes
 CFastTM card to SATA 7-pin (data) + 15-pin (power) connector
 CFast slot in push-push ejector
 Bootable

 Specification
 SATA / ATA standard Serial ATA 1.0a & 2.6 & 3.0  Bootable Yes
 CFast™ specification CFast™ specification Ver2.0  Operating Voltage +5V
 Form-factor 1.8" form-factor with 4 standard 1.8" HDD  Environmental SLC
mounting holes  Operating Temperature 0°C~+70°C
 Declaration RoHS & REACH compliant  Non- operating Temperature -20°C~+80°C
 Host interface SATA 7-pin (data) + 15-pin  Relative Humidity Max 90%
(5V power connector)  Supported OS O.S. which supports SATA storage
 CFast™ Socket SATA 7-pin (data) + 17-pin  Dimension (WxLxH) 68.58 x 60.00 x 8.00 (mm)
(3.3V power connector) Socket x 1  Weight (Max.) 25g
 Data Transfer Mode Serial ATA Gen-I/Gen-II/Gen-III  Warranty 1 year
(1.5Gb/s,3.0Gb/s and 6.0Gb/s) aSLC
 Part Number List

 AD-CA128SATA200AR 1.8" SATA III to CFast™ Card Adapter with mounting holes

 Part Number Decoder
X1 X2 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example MLC
A D C A 1 2 8 S A T A 2 0 0 A R

X1 X2 Adapter X9 X10 X11 X12 X13 Host interface
AD : Adapter series IDE04 : 40-pin IDE connector + 44-pin IDE connector
SATA 1 : SATA I 1.0a
X4 X5 Slot for card type SATA 2 : SATA I 1.0a and SATA II 2.0 3D-NAND
CF : CompactFlash® card SATA 3 : SATA I 1.0a & SATA II 2.0 & SATA III 3.0
CA : CFast™ card
X14 X15 X16 APRO Internal code
X6 X7 Slot number and type
X17 RoHS compliant
11 : 1 slot of CompactFlash® type I
12 : 1 slot of CompactFlash® type II R : RoHS compliant
24 : 2 slots of CompactFlash® type II
X8 Adapter form-factor Module DRAM
8 : 1.8 form-factor
5 : 2.5 form-factor
3 : 2.5 form-factor w/ standard 3.5" drive bay
R : 2.5 form-factor w/metal rear bracket
V : Vertical type
H : Horizontal type Adapter

Card-drive

118
Product specifications are subject to change without prior notice.
