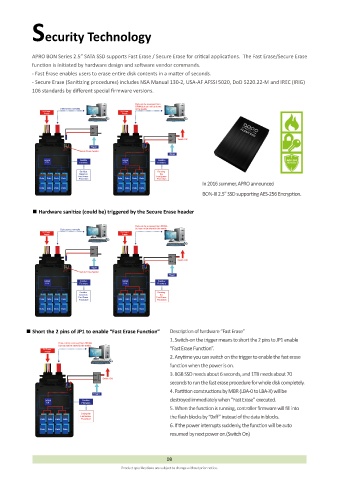

Security Technology

APRO BON Series 2.5” SATA SSD supports Fast Erase / Secure Erase for critical applications. The Fast Erase/Secure Erase
function is initiated by hardware design and software vendor commands.
- Fast Erase enables users to erase entire disk contents in a matter of seconds.
- Secure Erase (Sanitizing procedures) includes NSA Manual 130-2, USA-AF AFSSI 5020, DoD 5220.22-M and IREC (IRIG)
106 standards by different special firmware versions.

Data can be accessed from
DRAM,but can not be stored
Data access normally in the media.
5V Power 5V Power
Supply Supply
ON
OFF
ON
Switch ON
OFF
Trigger
JP1 JP1
Secure Erase header
Trigger
SATAII Sanitize SATAII Sanitize
CTL Firmware CTL Firmware
Sanitize Running
based on the
Fast Erase Fast Erase
Data Data Data Data Procedure Data Data Data Data Procedure
In 2016 summer, APRO announced
Data Data Data Data Data Data Data Data
BON-III 2.5” SSD supporting AES-256 Encryption.
 Hardware sanitize (could be) triggered by the Secure Erase header

Data can be accessed from DRAM,
Data access normally but can not be stored in the media.
5V Power 5V Power
Supply Supply
ON
OFF
ON
Switch ON
OFF
Trigger
JP1 JP1
Secure Erase header
Trigger
SATAII Sanitize SATAII Sanitize
CTL Firmware CTL Firmware
Sanitize Running
based on the
Fast Erase Fast Erase
Data Data Data Data Procedure Data Data Data Data Procedure
Data Data Data Data Data Data Data Data

 Short the 2 pins of JP1 to enable “Fast Erase Function” Description of hardware “Fast Erase”
1. Switch-on the trigger means to short the 2 pins to JP1 enable
Data can be accessed from DRAM,
but can not be stored in the media. “Fast Erase Function”.
5V Power
Supply
2. Anytime you can switch on the trigger to enable the fast erase
function when the power is on.
3. 8GB SSD needs about 6 seconds, and 1TB needs about 70
ON
Switch ON
OFF
seconds to run the fast erase procedure for whole disk completely.
JP1 4. Partition constructions by MBR (LBA-0 to LBA-X) will be
Trigger
destroyed immediately when “Fast Erase” executed.
SATAII Sanitize
CTL Firmware
5. When the function is running, controller firmware will fill into
Doing the
Fast Erase the flash blocks by “0xff” instead of the data in blocks.
Data Data Data Data Procedure
6. If the power interrupts suddenly, the function will be auto
Data Data Data Data
resumed by next power on.(Switch On)

08
Product specifications are subject to change without prior notice.
